Remove/Install Front Pre-Fuse Box - AR54.15-P-1330XG
Model 463
as of Model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line of battery. | AR54.10-P-0003XG | |
| 2 | Remove fender liner on right side of vehicle. | AR88.10-P-1300XG | |

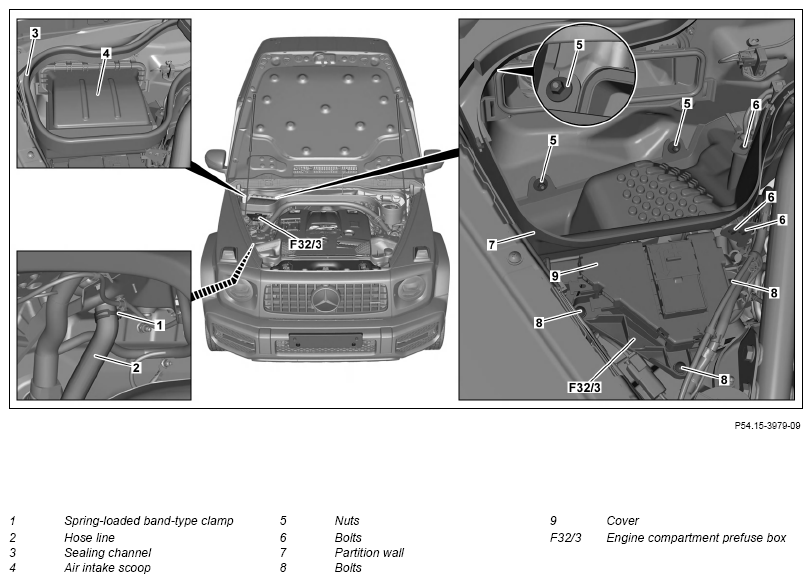

| 3 | Remove spring bracket clamp (1) and detach hose line (2). | ||
| 4 | Expose sealing section (3) in area of air intake scoop (4). | ||
| 5 | Release catches on air intake scoop (4) and remove air intake scoop (4). | ||
| 6 | Unscrew nuts (5). | ||
| 7 | Remove bolts (6) then remove partition (7). | *BA54.15-P-1007-02A | |
| 8 | Unscrew screws (8). | ||
| 9 | Remove cap (9) from engine compartment pre-fuse box (F32/3). | ||

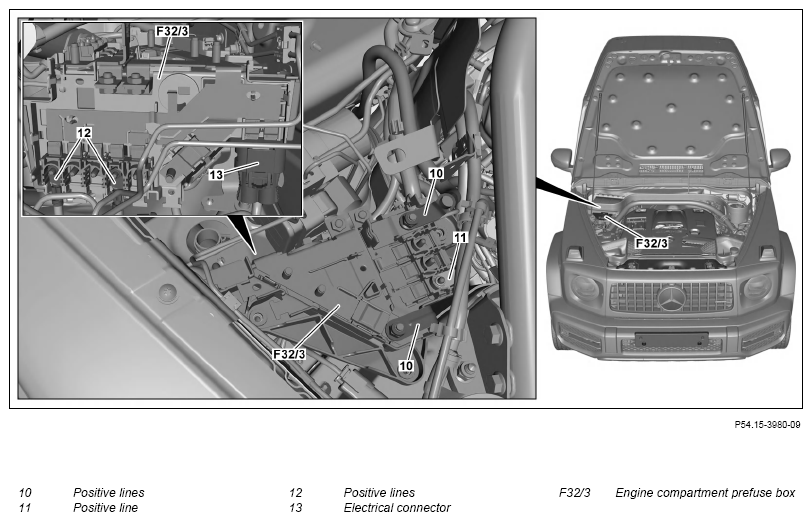

| 10 | Unscrew nuts and remove positive lines (10, 11). | ||
| *BA54.15-P-1006-02A | |||
| 11 | Lift up engine compartment pre-fuse box (F32/3) far enough until the nuts of positive lines (12) are accessible. | ||
| 12 | Unscrew the nuts and remove positive lines (12). | ||
| *BA54.15-P-1006-02A | |||
| 13 | Disconnect the electrical connector (13). | ||
| 14 | Remove engine compartment pre-fuse box (F32/3). | ||
| 15 | Change fuses. | Only when replacing the pre-fuse box (F32/3). | |
| Model 463 (except 463.342) as of Model year 2019 | GF54.15-P-1256-25GWM | ||
| 16 | Install in reverse order. |
FUSE AND RELAY MODULE
| Number | Designation | Model 463 up to Model year 2019 | Model 463 as of Model year 2019 | ||
|---|---|---|---|---|---|
| BA54.15-P-1006-02A | Nut, positive line to engine compartment pre-fuse box | M6 | Nm | - | 8 |
| M8 | Nm | - | 16 | ||
FUSE AND RELAY MODULE
| Number | Designation | Model 463 up to Model year 2019 | Model 463 as of Model year 2019 | ||
|---|---|---|---|---|---|
| BA54.15-P-1007-02A | Bolt, engine compartment pre-fuse box to holder | M6 | Nm | - | 5 |
