Remove/Install Fender Liner In Front Fender - AR88.10-P-1300XG

Model 463

as of model year 2019

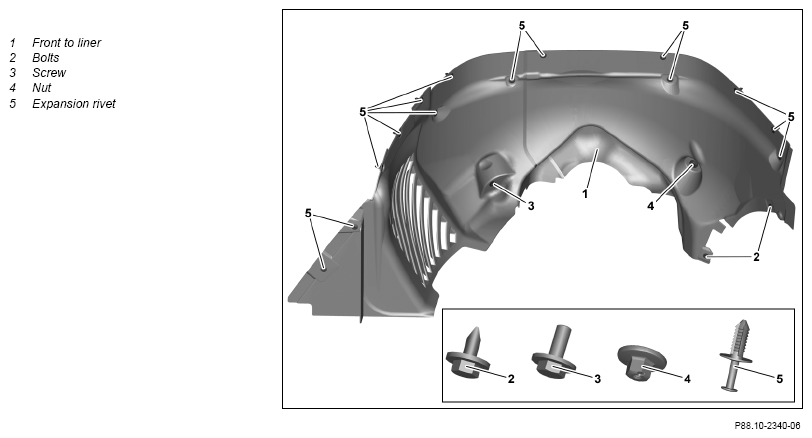

Fig 1: Front Fender Liner Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right front wheel and tire assembly.		AR40.10-P-1102XG
2	Unscrew bolts (2).
3	Remove the screw (3).
4	Unscrew nut (4).
5	Remove expansion rivet (5).	Clip remover	Fig 2
6	Pull outer edge of fender liner (1) towards the inside out of wheel arch lip and remove front fender liner (1).
7	Install in reverse order.

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
