Overview Of Energy Management System Components - GF54.10-P-9990GW
Model 463
as of Model year 2013

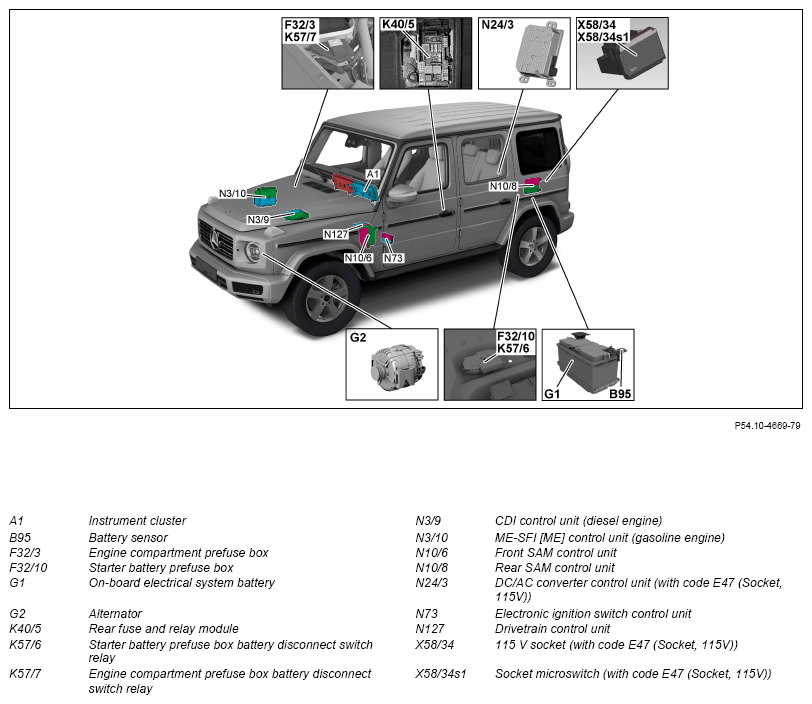

Model 463 as of production date April 3rd, 2018 (except Model 463.342)
Model 463 (except Model 463.342) up to production date April 2nd, 2018, Model 463.342, shown on Model 463.23

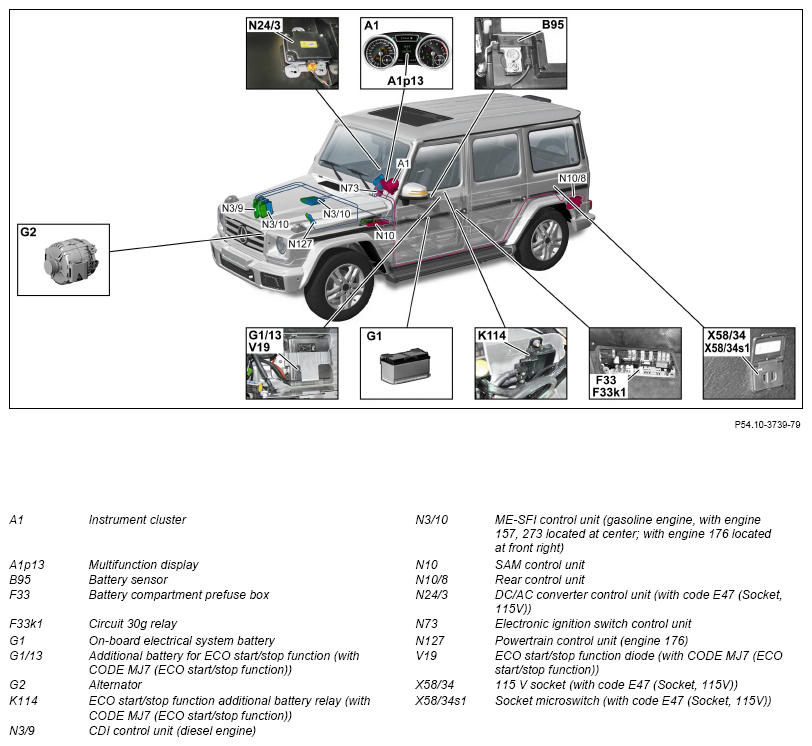

Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 except code MJ7 (ECO start/stop function)
Model 463.342
Model 463 as of Model year 2013
with code E11 (Blackout lighting with convoy light) The stealth lights control unit (N1) are also installed.
as of Model year 2013 except code MJ7 (ECO start/stop function) The additional battery (G1/7) (power supply for "Shift-by-Wire shift mechanism" at engine OFF) is not shown here. It is located in the battery compartment at the left next to the on-board electrical system battery under the rear floor.
Shown on Model 463.342 with code E11 (Stealth lights with convoy marking)
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |

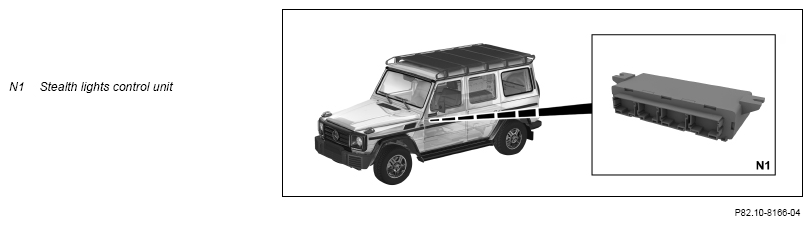

| Stealth lights control unit, component description | Model 463 as of Model year 2013 with code E11 (Blackout lighting with convoy light) N1 |
GF82.10-P-2021GW | |
| Component description for CDI control unit | Model 463 with engine 656.9 as of Model year 2013 N3/9 | GF07.16-P-6000OIB | |
| Model 463 with engine 642.8 as of Model year 2013 N3/9 | GF07.16-P-6000OGT | ||
| Component description for ME-SFI (ME) control unit | Model 463 with engine 176.9, 177.9 as of Model year 2019 N3/10 |
GF07.61-P-6000MNH | |
| Model 463 with engine 157.9 as of Model year 2013 N3/10 |
GF07.61-P-6000MMJ | ||
| Model 463 with engine 176.9 as of Model year 2016 up to Model year 2019 N3/10 |
GF07.61-P-6000MNF | ||
| Model 463 with engine 273.9 as of Model year 2013 N3/10 | GF07.61-P-6000MLJ | ||
| SAM control unit, component description | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 Model 463.342 as of Model year 2013 N10 |
GF54.21-P-4157GW | |
| Component description for front SAM control unit | Model 463 (except 463.342) as of Model year 2019 N10/6 | GF54.21-P-7010GWM | |
| Rear control unit, component description | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 Model 463.342 as of Model year 2013 N10/8 |
GF54.21-P-4134GW | |
| Component description for rear SAM control unit | Model 463 (except 463.342) as of Model year 2019 N10/8 | GF54.21-P-7030GWM | |
| DC/AC converter control unit, component description | Model 463 as of Model year 2013 with code E47 (Socket, 115 V) N24/3 |
GF54.21-P-4127GW | |
| Component description for the electronic ignition lock control unit | Model 463 (except 463.342) as of Model year 2019 N73 |
GF80.57-P-6001GWM | |
| Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 Model 463.342 as of Model year 2013 N73 |
GF80.57-P-6001GW | ||
| Drivetrain control unit, component description | Model 463 with engine 656.9 as of Model year 2013 N127 | GF54.21-P-2141OIB | |
| Model 463 with engine 176.9, 177.9 as of Model year 2019 N127 |
GF54.21-P-2141MNH | ||
| Model 463 with engine 176.9 as of Model year 2016 up to Model year 2019 N127 |
GF54.21-P-2141MNF | ||
| Table of contents for function description of energy management | GF54.10-P-0990GW |
