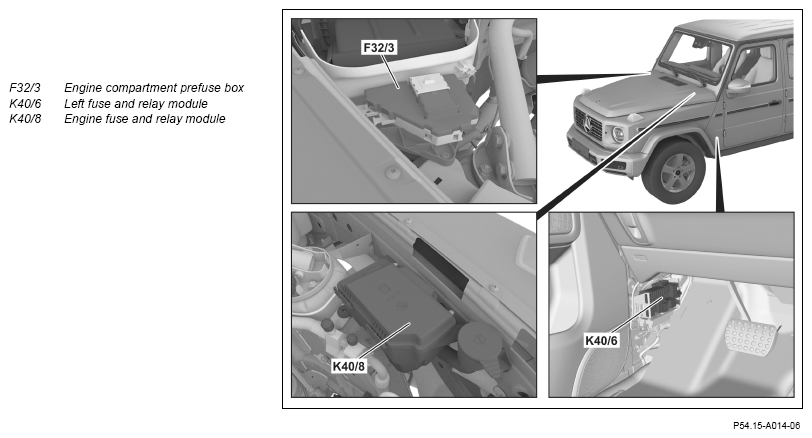

Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800GW
Model 463
as of Model year 2013
Model 463 as of production date April 3rd, 2018 except Model 463.342
Model 463 as of production date April 3rd, 2018 except Model 463.342
Model 463 up to production date April 2nd, 2018 or Model 463.342, shown on Model 463.23
Model 463
as of Model year 2013
with code ZS8 (Protection class VR7/glass area VR9)

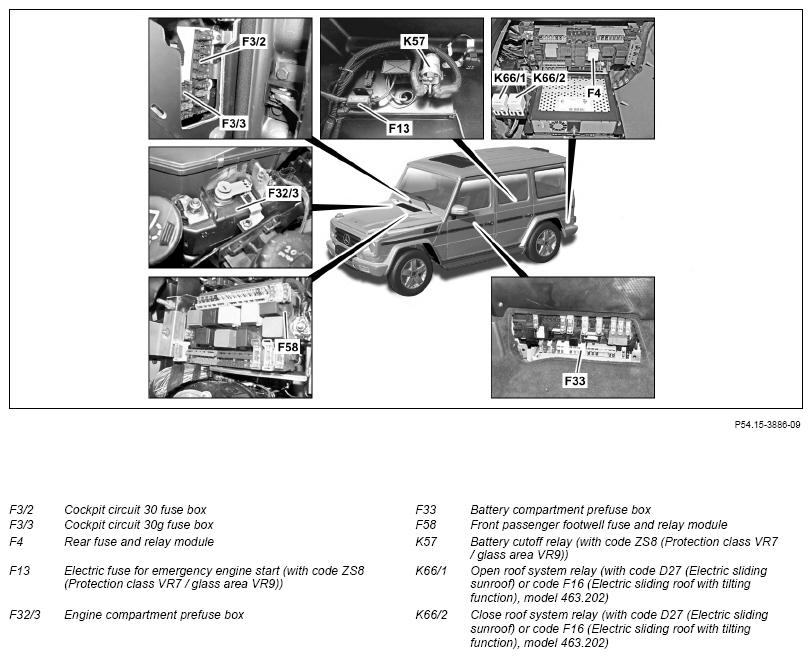

The electrical fuse for emergency engine start protects the battery cutoff relay. The fuse rating is 30 A.

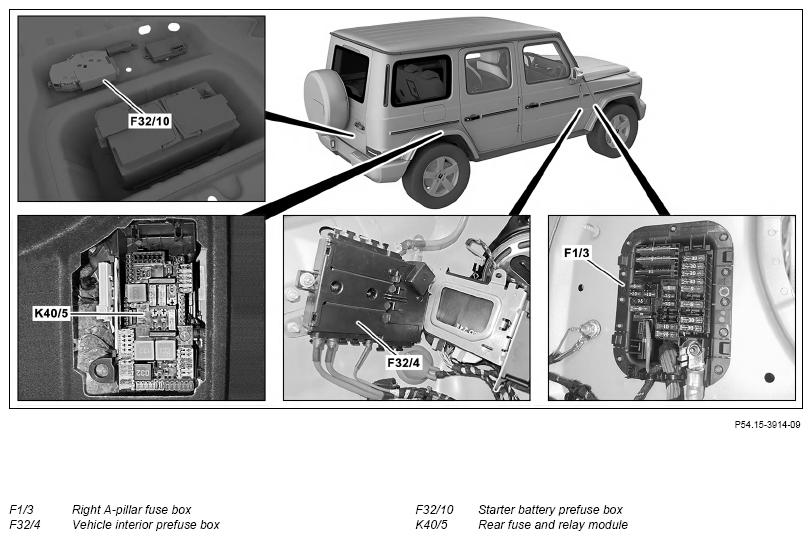

| Assignment of right A-pillar fuse box | Model 463 (except 463.342) as of Model year 2019 F1/3 | GF54.15-P-1256-44GWM | |
| Fuse assignment of pre-fuse box in engine compartment | Model 463 (except 463.342) as of Model year 2019 F32/3 | GF54.15-P-1256-25GWM | |
| Fuse assignment on interior pre-fuse box | Model 463 (except 463.342) as of Model year 2019 F32/4 | GF54.15-P-1256-26GWM | |
| Fuse assignment of starter battery pre-fuse box | Model 463 (except 463.342) as of Model year 2019 F32/10 | GF54.15-P-1256-50GWM | |
| Assignment of rear fuse and relay module | Model 463 (except 463.342) as of Model year 2019 K40/5 | GF54.15-P-1256-30GWM | |
| Assignment of left fuse and relay module | Model 463 (except 463.342) as of Model year 2019 K40/6 | GF54.15-P-1256-31GWM | |
| Assignment of engine fuse and relay module | Model 463 (except 463.342) as of Model year 2019 K40/8 | GF54.15-P-1256-32GWM | |
| Fuse assignment in cockpit fuse box | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 Model 463.342 as of Model year 2013 F3/2, F3/3 |
GF54.15-P-1256-22GW | |
| Assignment of rear fuse and relay module | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 Model 463.342 as of Model year 2013 F4 |
GF54.15-P-1256-30GW | |
| Fuse assignment of pre-fuse box in engine compartment | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 Model 463.342 as of Model year 2013 F32/3 |
GF54.15-P-1256-25GW | |
| Fuse assignment of battery compartment pre-fuse box | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 Model 463.342 as of Model year 2013 F33 |
GF54.15-P-1256-15GW | |
| Assignment of passenger-side footwell fuse and relay module | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 Model 463.342 as of Model year 2013 F58 |
GF54.15-P-1256-35GW |
