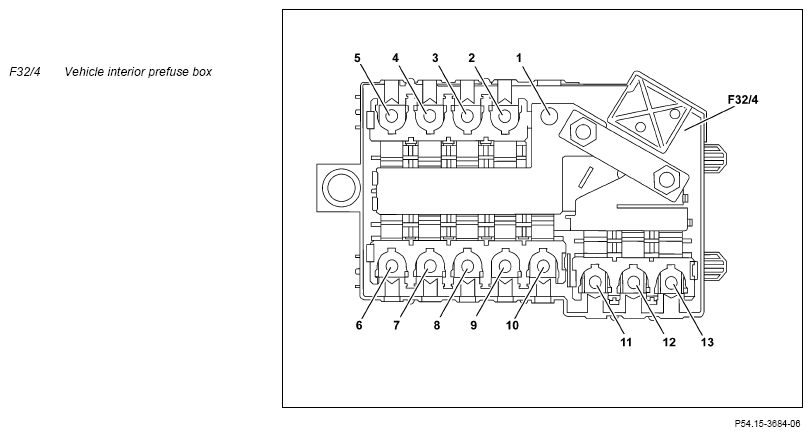

Fuse Assignment On Interior Pre-Fuse Box - GF54.15-P-1256-26GWM
Model 463 (except 463.342)
as of Model year 2019
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | - | 30t | 35.0 RD | Connection, circuit 30t from starter battery pre-fuse box (F32/10) | - |
| 2 | Electrical fuse 2 (F32/4f2) | 30t | - | Spare | - |
| 3 | Electrical fuse 3 (F32/4f3) | 30t | 4.0 RD | Air conditioner housing (A32) | 40 |
| 4 | Electrical fuse 4 (F32/4f4) | 30t | - | Spare | - |
| 5 | Electrical fuse 5 (F32/4f5) | 30t | Unknown | Valid for diesel engine: PTC heater booster (R22/3) | 150 |
| 6 | Electrical fuse 6 (F32/4f6) | 30t | 16.0 RD | Right A-pillar fuse box (F1/3) | 150 |
| 7 | Electrical fuse 7 (F32/4f7) | 30t | 16.0 RD | Rear fuse and relay module (K40/5) | 150 |
| 8 | Electrical fuse 8 (F32/4f8) | 30t | 16.0 RD | Valid with code F49 (Windshield, heated): Windshield heater control unit (N61) | 125 |
| 9 | Electrical fuse 9 (F32/4f9) | 30t | - | Spare | - |
| 10 | Electrical fuse 10(F32/4f10) | 30t | 6.0 RD | Fully integrated transmission control unit (Y3/8n4) | 60 |
| 11...13 | Electrical fuse 11 (F32/4f11)... electrical fuse 13 (F32/4f13) | 30t | - | Spare | - |
