Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997GW
Model 463 (except 463.342)
as of Model year 2013 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist)
Model 463 (except 463.342)
as of Model year 2013 up to Model year 2019 with code FR8 (Rear view camera)
Model 463.342
with code EZ8 (PARKTRONIC Park Assist)
Model 463.342
with code FR8 (Rear view camera)

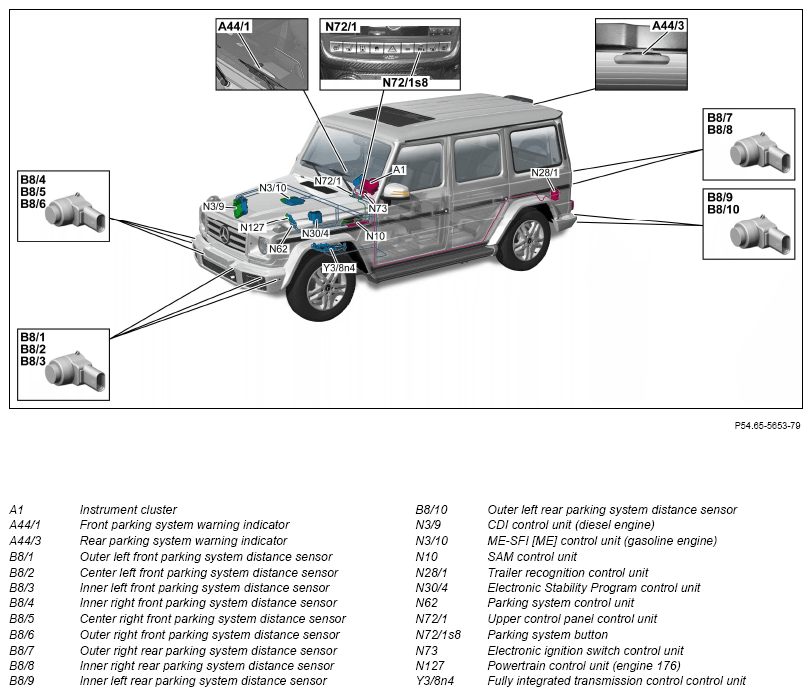

Parking system (with CODE EZ8 (Parktronic)), shown on Model 463.23

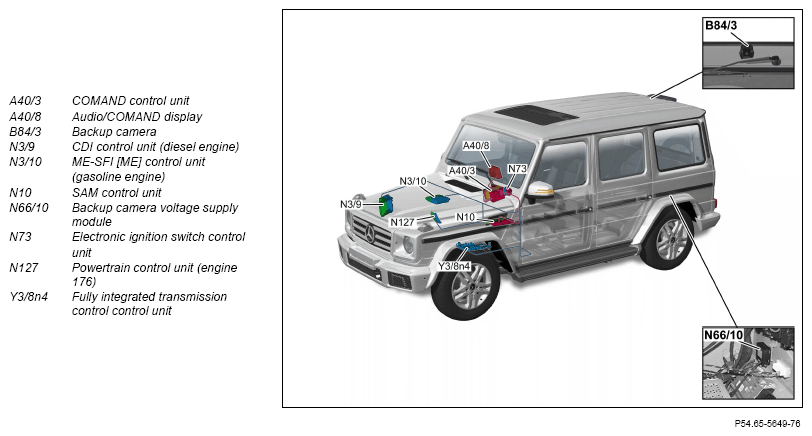

Reversing camera (with code FR8 (Reversing camera)) as of production date September 1st, 2016, shown on Model 463.23

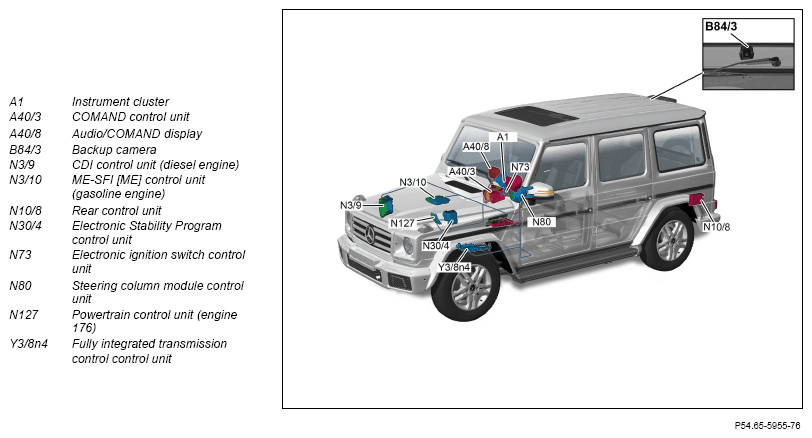

Reversing camera (with code FR8 (Reversing camera)) up to production date August 31st, 2016, shown on Model 463.23
| Component description for instrument cluster | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 with code FR8 (Rear view camera) Model 463.342 as of Model year 2017 with code EZ8 (PARKTRONIC Park Assist) Model 463.342 as of Model year 2017 with code FR8 (Rear view camera) A1 |
GF54.30-P-6000GW | |
| Component description for COMAND controller unit | Model 463 as of Model year 2013 up to Model year 2017 with code FR8 (Rear view camera) A40/3 | GF82.85-P-3136GW | |
| Model 463 (except 463.342) as of Model year 2017 up to Model year 2019 with code EU4 (COMAND Online) with code FR8 (Rear view camera) A40/3 |
GF82.85-P-3136GWA | ||
| Component description for Audio/COMAND display | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 with code FR8 (Rear view camera) A40/8 |
GF54.30-P-6150GW | |
| Component description for CDI control unit | Model 463 with engine 642.8 as of Model year 2013 with code EZ8 (PARKTRONIC Park Assist) Model 463 with engine 642.8 as of Model year 2013 with code FR8 (Rear view camera) N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 157.9 as of Model year 2013 with code EZ8 (PARKTRONIC Park Assist) Model 463 with engine 157.9 as of Model year 2013 with code FR8 (Rear view camera) N3/10 |
GF07.61-P-6000MMJ | |
| Model 463 with engine 273.9 as of Model year 2013 with code EZ8 (PARKTRONIC Park Assist) Model 463 with engine 273.9 as of Model year 2013 with code FR8 (Rear view camera) N3/10 |
GF07.61-P-6000MLJ | ||
| Model 463 (except 463.342) with engine 176.9 as of Model year 2016 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463 (except 463.342) with engine 176.9 as of Model year 2016 up to Model year 2019 with code FR8 (Rear view camera) N3/10 |
GF07.61-P-6000MNF | ||
| SAM control unit, component description | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 with code FR8 (Rear view camera) Model 463.342 with code EZ8 (PARKTRONIC Park Assist) Model 463.342 with code FR8 (Rear view camera) N10 |
GF54.21-P-4157GW | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GW | |
| Component description for trailer recognition control unit | Model 463 (except 463.242/342) as of Model year 2013 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463.342 as of Model year 2013 with code EZ8 (PARKTRONIC Park Assist) N28/1 |
GF31.19-P-4050GW | |
| Component description for Electronic Stability Program control unit | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 with code FR8 (Rear view camera) Model 463.342 as of Model year 2017 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463.342 as of Model year 2017 up to Model year 2019 with code FR8 (Rear view camera) N30/4 |
GF42.45-P-5119GW | |
| Parking system control unit component description | Model 463 (except 463.342) as of Model year 2013 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463.342 with code EZ8 (PARKTRONIC Park Assist) N62 |
GF54.65-P-5002GW | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Drivetrain control unit, component description | Model 463 (except 463.342) with engine 176.9 as of Model year 2016 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463 (except 463.342) with engine 176.9 as of Model year 2016 up to Model year 2019 with code FR8 (Rear view camera) N127 | GF54.21-P-2141MNF | |
| Component description for fully integrated transmission control unit | Model 463 (except 463.342) with transmission 722.9 as of Model year 2013 up to Model year 2019 with code EZ8 (PARKTRONIC Park Assist) Model 463 (except 463.342) with transmission 722.9 as of Model year 2013 up to Model year 2019 with code FR8 (Rear view camera) Model 463.342 with transmission 722.9 as of Model year 2017 with code EZ8 (PARKTRONIC Park Assist) Model 463.342 with transmission 722.9 as of Model year 2017 with code FR8 (Rear view camera) Y38n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of parking assistance systems | GF54.00-P-0997GW |
