(Removing And Installing Slave Cylinder - AR25.20-P-0150LW)
Transmission 716.7 in model 172, 205, 213, 238, 253
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove center and rear sections of lower engine compartment lining | Transmission 716.7 in model 172.4 | AR61.20-P-1105W |
| Transmission 716.7 in model 205, 253 | AR61.20-P-1105LW | ||
| Transmission 716.7 in model 213, 238 |
AR61.20-P-1105LWE | ||

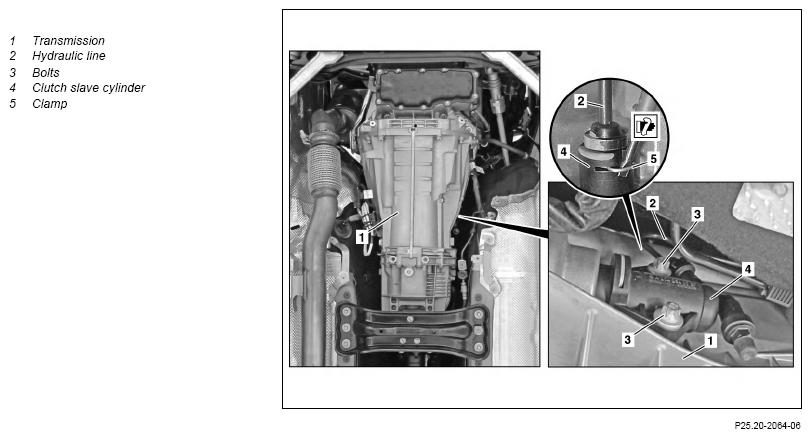

| 2 | Unclip hydraulic line (2) of clutch operating system from underfloor and transmission (1) | ||
| 3 | Remove bolt (3) | *BA25.20-P-1002-01G | |
| 4 | Remove clutch slave cylinder (4) with connected hydraulic line (2) from transmission (1) | ||
| 5 | Clean area surrounding hydraulic line (2) on clutch slave cylinder (4) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Using suitable tool, pry clamp (5) of hydraulic line (2) out of clutch slave cylinder (4) | ||
| 7 | Check clamp (5) for damage | If damage is present ↓ Replace clamp (5). |
|
| 8 | Remove hydraulic line (2) from clutch slave cylinder (4) | ||
| 9 | Seal openings of hydraulic line (2) and in clutch slave cylinder (4) using suitable stop plugs | Fig 1 | |
| 10 | Install in the reverse order | ||
| 11 | Bleed clutch operating system | AR25.20-P-0070LW | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform engine test run and check transmission (1) and clutch operating system for leaks and proper operation | ||
| 13 | Install center and rear sections of lower engine compartment lining | Transmission 716.7 in model 172.4 | AR61.20-P-1105W |
| Transmission 716.7 in model 205, 253 | AR61.20-P-1105LW | ||
| Transmission 716.7 in model 213, 238 | AR61.20-P-1105LWE |
CLUTCH OPERATING SYSTEM
| Number | Designation | Transmission 716.7 | |
|---|---|---|---|
| BA25.20-P-1002-01G | Screw/bolt, clutch slave cylinder to transmission housing | Nm | 21 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
