(Bleed Clutch Operating System - AR25.20-P-0070LW)

Transmission 716.7 in model 172, 205, 213, 238, 253

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove

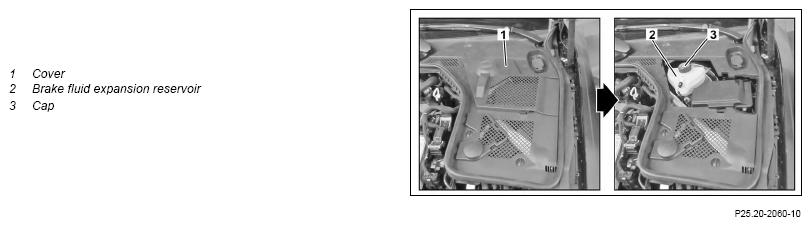

1	Remove cover (1) over brake fluid expansion reservoir (2)
2	Mark height of fill level of brake fluid on brake fluid expansion reservoir (2)
3	Unscrew cap (3) from brake fluid expansion reservoir (2)
4	Connect filler/bleeder unit to brake fluid expansion reservoir (2)
	000 588 01 82 00 Filling unit	Note operator's manual for filler/bleeder unit.	WS25.00-P-0016B
5	Remove rear section of lower engine compartment lining	Transmission 716.7 in model 172.4	AR61.20-P-1105W
		Transmission 716.7 in model 205, 253	AR61.20-P-1105LW
		Transmission 716.7 in model 213, 238	AR61.20-P-1105LWE

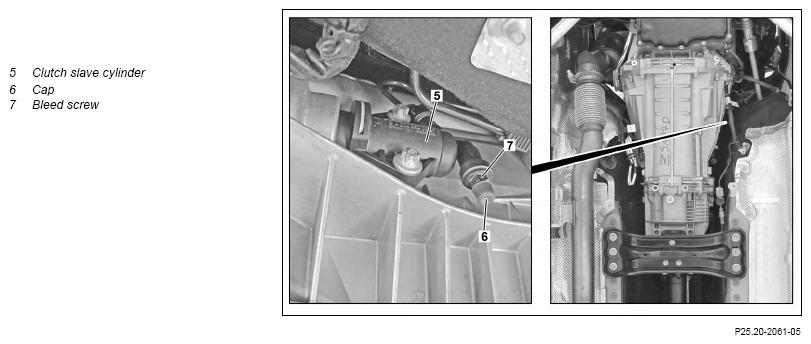

6	Detach cap (6) from clutch slave cylinder (5)
7	Slide hose onto bleed screw (7) on clutch slave cylinder (5)
	Bleeding
8	Switch on filler/bleeder unit
	000 588 01 82 00 Filling unit	Set pressure of 2.0 bar.	WS25.00-P-0016B
9	Open bleed screw (7) and let brake fluid flow out	Brake fluid must emerge clean and free of bubbles.
10	Close bleed screw (7)	Bleed screw at clutch slave cylinder	*BA25.20-P-1001-01G
11	Switch off filler/bleeder unit
	000 588 01 82 00 Filling unit	Pressure must drop for approx. 60 s to ambient pressure (0.0 bar on measuring instrument).	WS25.00-P-0016B
12	Switch on filler/bleeder unit	Build up pressure of 2.0 bar for approx. 10 s.
	Install
13	Detach hose from bleed screw (7)
14	Detach filler/bleeder unit from brake fluid expansion reservoir (2)
15	Correct the fill level of the brake fluid in the brake fluid expansion reservoir (2)	Observe marking.
16	Screw on cap (3)
	Check
17	Check the clutch operator for proper operation and leaktightness
18	Attach cap (6) to clutch slave cylinder (5)
19	Install rear section of lower engine compartment lining	Transmission 716.7 in model 172	AR61.20-P-1105W
		Transmission 716.7 in model 205, 253	AR61.20-P-1105LW
		Transmission 716.7 in model 213, 238	AR61.20-P-1105LWE
20	Install cover (1) over brake fluid expansion reservoir (2)
