Remove/Install Differential Lock Actuator Motor - AR35.40-P-7400MNE

Model 213.088/089/288/289

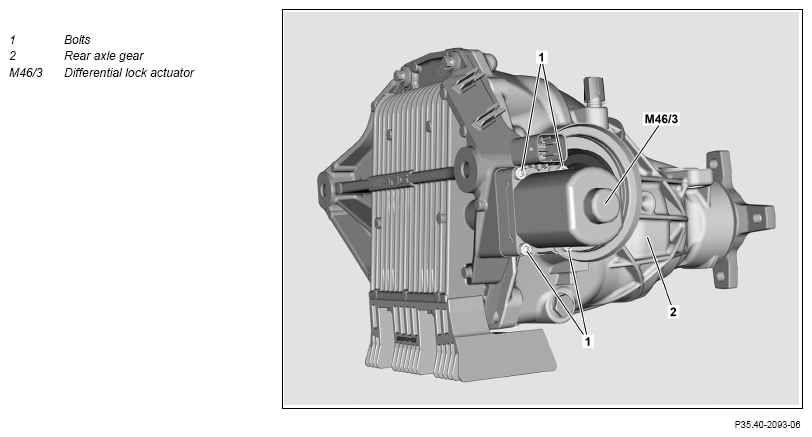

Fig 1: Differential Lock Actuator Motor Components Location - Model 213.088/089/288/289

G13746264

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install
1	Raise vehicle.		AR00.60-P-1002LWG
2	Clean area surrounding differential lock actuator (M46/3).	Assembly cleaner	*BR00.45-Z-1028-04A
3	Release, disconnect and expose electrical connector of differential lock actuator (M46/3).
4	Unscrew screws (1) and remove differential lock actuator (M46/3) downwards.	Bolt, actuator motor for differential lock to rear axle differential	*BA35.40-P-1001-02A
5	Clean contact surface on rear axle differential (2).	Assembly cleaner	*BR00.45-Z-1028-04A
6	Install in the reverse order.
	Check
7	Check and correct oil level of rear axle differential (2).		AR35.31-P-0520-08MNE
		Filling capacity for rear axle differential with differential lock	*BF35.31-P-1003-02C
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Oil filler screw of rear axle differential	*BA35.31-P-1002-02H

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 213
BA35.31-P-1002-02H	Oil filler screw of rear axle differential	Nm	50

DIFFERENTIAL LOCK

Number	Designation		Model 213
BA35.40-P-1001-02A	Bolt, actuator motor for differential lock to rear axle differential	Nm	8

REAR AXLE GEAR

Number	Designation		Model 213.088/089/288/289
BF35.31-P-1003-02C	Filling capacity for rear axle differential with differential lock	Liter	1, 2
BF35.31-P-1003-02C	Specification		BB00.40-P-0235-61A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	A 002 989 23 71
