Remove Install Crankshaft Pulse Ring - AR15.12-P-0001MRD
Engine 274.9 in model 213
Engine 274.9 in model 238
| Remove/install | |||

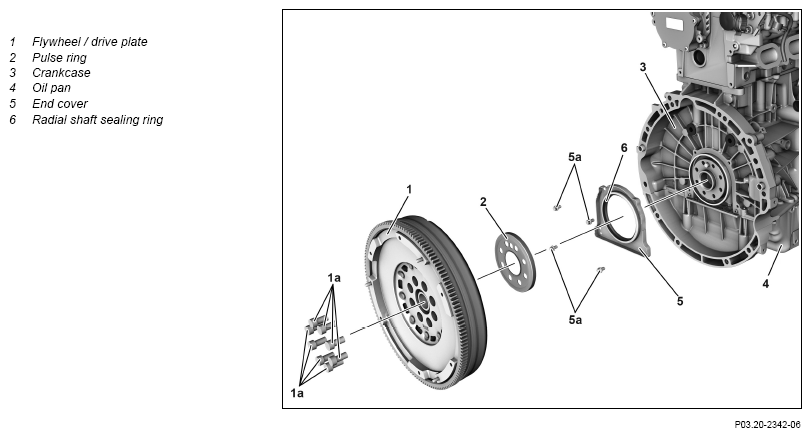

| 1 | Remove flywheel/driven plate (1) | AR03.30-P-8001MRD | |
| 2 | Remove crankshaft Hall sensor | AR15.12-P-2136MRD | |
| 3 | Remove pulse ring (2) | Remove pulse ring (2) carefully. Do not use sharp-edged tools. The rubber lining of the pulse ring (2) must not get destroyed. The pulse ring (2) will get damaged otherwise. The pulse ring (2) must not come into contact with external magnetic fields. The pulse ring (2) will get damaged otherwise. |
|
| Check | |||
| 4 | Check rubber lining of pulse ring (2) for damage | If damage occurs to the rubber lining ↓ Replace pulse ring (2). |
|
| 5 | Check end cover (5) and radial shaft sealing ring (6) for leaktightness | In the case of leaks on the end cover (5) or the radial shaft sealing ring (6) ↓ Replace end cover (5) with radial shaft sealing ring (6). |
|
| AR03.20-P-3064MRD | |||
| Clean | |||
| 6 | Clean the contact surfaces of the pulse ring (2) and the crankshaft flange | Do not use sharp-edged or pointed tools or emery cloth to clean. The surfaces are destroyed otherwise and the pulse ring (2) and crankshaft will be unusable. |
|
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| 7 | Clean crankcase (3) and oil pan (4) in area of end cover (5) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 8 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check engine for proper function |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
