Remove/Install Rear Radial Shaft Sealing Ring On Crankshaft - AR03.20-P-3064MRD
Engine 274.9 in model 213
Engine 274.9 in model 238
MODIFICATION NOTES
| 20.05.2019 | Rear end cover bolt at crankcase/oil pan (belt side) | BA01.40-P-1002-01K |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||

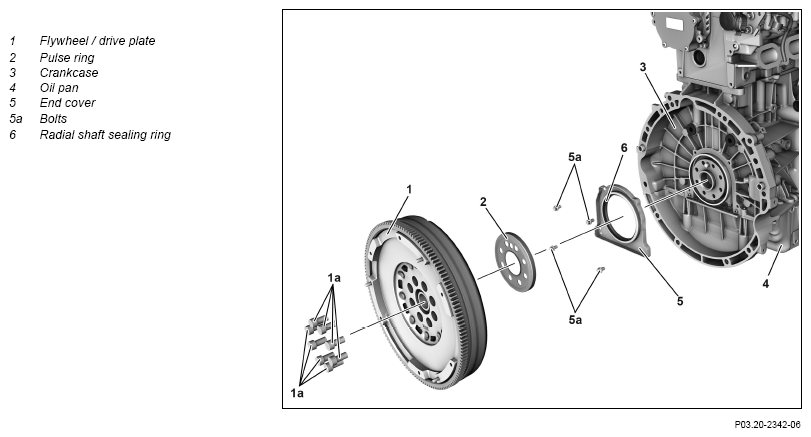

| 1 | Remove flywheel/driven plate (1) | AR03.30-P-8001MRD | |
| 2 | Remove crankshaft Hall sensor | AR15.12-P-2136MRD | |
| 3 | Remove pulse ring (2) | AR15.12-P-0001MRD | |
| 4 | Clean crankcase (3) and oil pan (4) in area of end cover (5) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 5 | Remove screw/bolts (5a) | ||
| 6 | Place tool on the side cutouts of the end cover (5) and unfasten the end cover (5) from crankcase (3) | To loosen the end cover (5) do not stamp in any tooling between the end cover (5) and crankcase (3). The sealing surfaces can be damaged otherwise. |
|
| 7 | Replace end cover (5) with radial shaft sealing ring (6) | ||
| Install | |||
| 8 | Install new end cover (5) with a new radial shaft sealing ring (6) | AR03.20-P-3063-01MR | |
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| Sealant, Loctite 5970, 50 ml | *BR00.45-Z-1013-01A | ||
| *BA01.40-P-1002-01K | |||
| Fig 2 | |||
| 9 | Install pulse ring (2) | AR15.12-P-0001MRD | |
| 10 | Install crankshaft Hall sensor | AR15.12-P-2136MRD | |
| 11 | Install flywheel/drive plate (1) | AR03.30-P-8001MRD | |
| 12 | Check engine oil level and correct | ||
| AP18.00-P-1811MP | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Carry out an engine test run; in doing check engine for leaktightness |
CRANKCASE, TIMING CASE COVER, END COVER
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA01.40-P-1002-01K | Screw, rear end cover to crankcase/oil pan (belt side) | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
| BR00.45-Z-1038-04A | Loctite 7200 | Henkel AG & Co. KG a A |
