Remove/Install Valve Springs - AR05.30-P-3021MRD

Engine 274.9 in model 213

Engine 274.9 in model 238

G13744111Courtesy of MERCEDES-BENZ USA

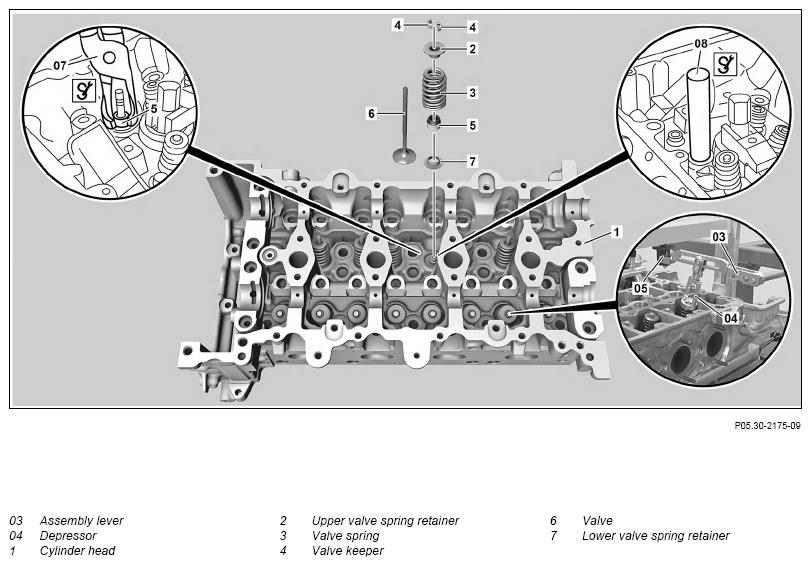

Fig 1: Valve Springs Components Location - Engine 274.9 In Model 213
G13744112Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Remove cylinder head (1)   AR01.30-P-5800MRD
2 Remove valve clearance compensating element   AR05.00-P-2013MRD

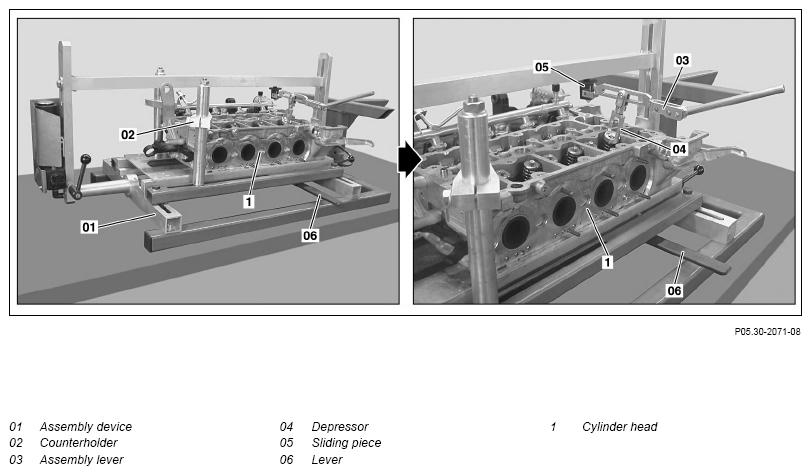

3 Mount cylinder head (1) onto assembly device (01) NOTES
Before commissioning ensure that the counterholder (02) for the SPECIAL TOOL Assembly device (01) is mounted correctly on the cylinder head (1).
Otherwise, the cylinder head (1) will be damaged.
IMPORTANT Follow operating instructions provided by SPECIAL TOOL assembly device manufacturer (01).

    SPECIAL TOOL Assembly tool Fig 4
4 Attach assembly lever (03) with depressor (04) to sliding piece (05), put depressor (04) onto upper valve spring retainer (2) vertically and align sliding piece (05) SPECIAL TOOL Depressor Fig 5
    SPECIAL TOOL Valve assembly tools kit Fig 3
5 Push the air suspension bellows of the assembly device (01) with a lever (06) until this stands in the middle over the combustion chamber of the respective valves (6) NOTES
Ensure that spring bellows for SPECIAL TOOL assembly device (01) are always correctly centered over a combustion chamber and are pushed in the middle.
The valves (6) will otherwise be damaged.
IMPORTANT Follow the operating instructions for the SPECIAL TOOL assembly device manufacturer (01).

6 Connect compressed air to assembly device (01) and open compressed air valve IMPORTANT Follow the operating instructions for the SPECIAL TOOL assembly device manufacturer (01).
7 Compress valve spring (3) with assembly lever (03)
8 Remove valve keepers (4) INSTALLATION IMPORTANT Ensure that the valve keepers (4) are reliably seated.
    SPECIAL TOOL Magnetic pin Fig 2
9 Remove upper valve spring retainer (2) and valve spring (3)
INSPECT Check
10 Check valve springs (3) for damage If damage is present

Replace all valve springs (3).

11 Check upper valve spring retainer (2) and lower valve spring retainer (7) for score marks, cracks and pitting In there are score marks, cracks or pitting

Replace upper and lower valve spring retainers (2, 7).

12 Check valve stems for ridging and pitting For ridging on the valve stems

Deburr valve stems.
For pittings on valve stems

Replace valves (6).

13 Install in the reverse order
Fig 2: Identifying Magnetic Pin (210 589 00 40 00)
G13744113Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Valve Assembly Tools Kit (111 589 25 61 00)
G13744114Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Tool (271 589 00 59 00)
G13744115Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Depressor (640 589 00 61 00)
G13744116Courtesy of MERCEDES-BENZ USA
