Remove/Install Radar Sensor In Rear Bumper - AR54.21-P-0704LWE
Model 213, 238
with code 233 (DISTRONIC PLUS)
Model 213, 238
with code 234 (Blind Spot Monitoring)

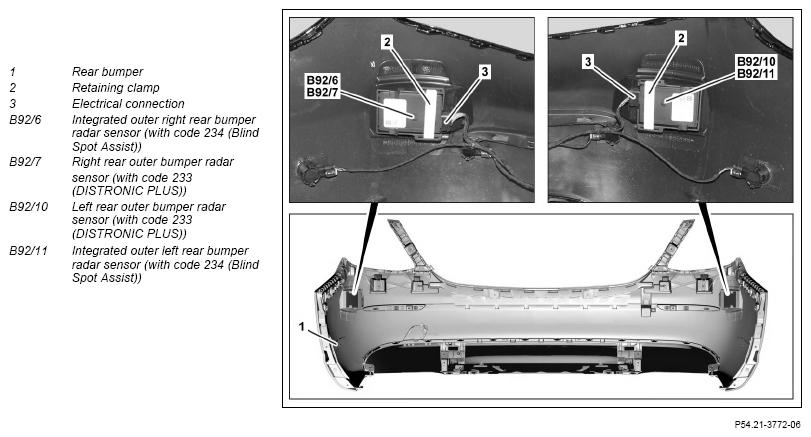

Shown on rear bumper (1) on model 213
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear bumper (1) | Model 238 with code 233 (DISTRONIC PLUS) Model 238 with code 234 (Blind Spot Monitoring) | AR88.20-P-2200LWO |
| Model 213.0/1 with code 233 (DISTRONIC PLUS) Model 213.0/1 with code 234 (Blind Spot Monitoring) |
AR88.20-P-2200LW | ||
| Model 213.2 with code 233 (DISTRONIC PLUS) Model 213.2 with code 234 (Blind Spot Monitoring) |
AR88.20-P-2200LWS | ||
| 2 | Disconnect electrical connection (3) from rear bumper radar sensor (B92/6, B92/7, B92/10 or B92/11) | ||
| 3 | Unclip retaining clamp (2) and remove rear bumper radar sensor (B92/6, B92/7, B92/10 or B92/11) | ||
| 4 | Install in the reverse order | ||
| Initial startup | |||
| 5 | Commission rear bumper radar sensor (B92/6, B92/7, B92/10 or B92/11) | ||
| Model 238 with code 233 (DISTRONIC PLUS) Model 238 with code 234 (Blind Spot Monitoring) |
AD00.00-P-2000-06LWO | ||
| Model 213 with code 233 (DISTRONIC PLUS) Model 213 with code 234 (Blind Spot Monitoring) |
AD00.00-P-2000-04B |
