Remove/Install Distronic Distance Pilot Electric Controller Unit - AR54.21-P-0701LWE
Model 213, 238
with code 239 (Active Distance Assist DISTRONIC)
Shown on model 213 without Mercedes star in the radiator grille
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission DISTRONIC Distance Pilot controller unit (A108/1) | When replacing DISTRONIC Distance Pilot controller unit (A108/1). | |
| Model 238 with code 239 (Active Distance Assist DISTRONIC) |
AD00.00-P-2000-06LWO | ||
| Model 213 with code 239 (Active Distance Assist DISTRONIC) |
AD00.00-P-2000-04B | ||
| 2.1 | Unclip and remove cover (1) from radiator trim | Model 213 with code 239 (Active Distance Assist DISTRONIC) If cover (1) is installed. |
|

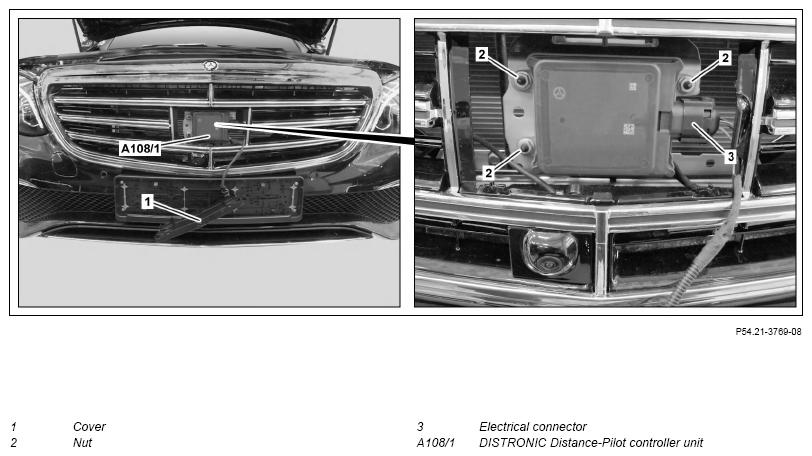

| Fig 1 | |||
| 2.2 | Remove Mercedes star from radiator trim | If a Mercedes star is installed. | |
| AR88.40-P-4050LW | |||
| 3 | Unscrew nuts (2) | ||
| 4 | Remove DISTRONIC Distance Pilot controller unit (A108/1) and detach electrical connection (3) | ||
| 5 | Install in the reverse order | ||
| Calibrate | |||
| 6 | Calibrate DISTRONIC Distance Pilot controller unit (A108/1) | ||
| Model 238 with code 239 (Active Distance Assist DISTRONIC) |
AD00.00-P-2000-06LWO | ||
| Model 213 with code 239 (Active Distance Assist DISTRONIC) |
AD00.00-P-2000-04B | ||
| 000 588 17 21 00 Adjusting device | WS30.00-P-0006B |
