Remove/Install Mercedes Star - AR88.40-P-4050LW
Model 205, 213
with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Model 205, 213
with code 239 (Adaptive cruise control Pro (DISTRONIC PRO))
Model 205, 213
with code 772 (AMG styling - Front spoiler, side skirts)
Model 205, 213
with code P15 (AVANTGARDE exterior)
Model 205, 213
with code P76 (Standard exterior equipment and appointments)
Model 213
with code 258 (Collision warning system with active brake application FCW-Stop)
Model 238, 253, 293
| Remove | |||

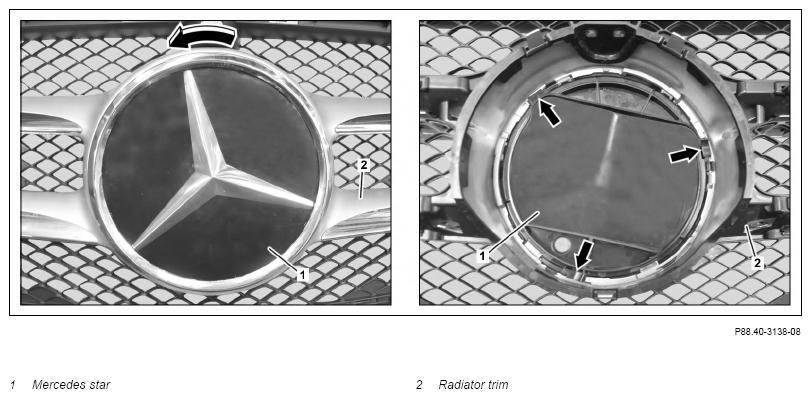

| 1 | Turn Mercedes star (1) approx. 15° in direction of arrow and remove from radiator grille (2) | ||
| 2 | Disconnect electrical connector on Mercedes star (1) | Model 205, 213, 238 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) Model 205, 213, 238 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) Model 213 with code 258 (Collision warning system with active brake application FCW-Stop) |
|
| Install | |||
| 3 | Connect electrical connector on Mercedes star (1) | Model 205, 213, 238 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) Model 205, 213, 238 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) Model 213 with code 258 (Collision warning system with active brake application FCW-Stop) |
|
| 4 | Insert Mercedes star (1) into radiator grille (2) with catch hooks (arrows) as shown and turn approx. 15° in the opposite direction to the arrow |
