Remove/Install Additional Fan For Instrument Cluster - AR54.30-P-0003FRX
Model 213, 257, 290 with code 464 (Full display digital instrument cluster)

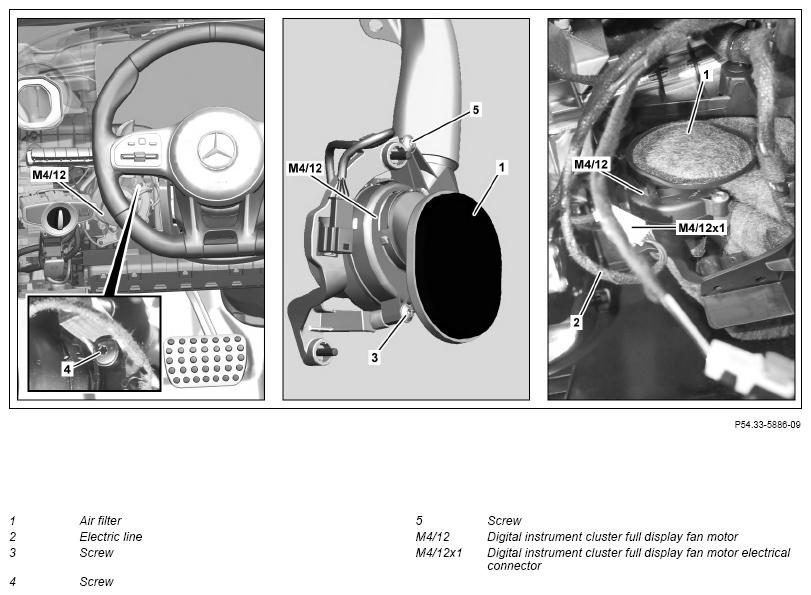

Shown on model 290
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim at bottom for instrument panel on driver's side. | Model 213 with code 464 (Full display digital instrument cluster) | AR68.10-P-1501LWE |
| Model 257, 290 with code 464 (Full display digital instrument cluster) | AR68.10-P-1501FR | ||
| 2 | Remove driver kneebag. | Model 213 with code 294 (Kneebag) with code 464 (Full display digital instrument cluster) | AR91.60-P-0200LW |
| Model 257, 290 with code 464 (Full display digital instrument cluster) | AR91.60-P-0200FR | ||
| 3 | Turn air filter (1) clockwise and remove. | ||
| 4 | Disconnect digital instrument cluster full display fan motor electrical connector (M4/12x1) and expose electrical line (2). | ||
| 5 | Remove screw (3). | ||
| 6 | Remove screw (4) from bracket of digital instrument cluster full display fan motor (M4/12). | ||
| 7 | Push digital instrument cluster full display fan motor (M4/12) far enough to one side until screw (5) is accessible. | ||
| 8 | Remove screw (5). | ||
| 9 | Remove digital instrument cluster full display fan motor (M4/12) from air duct. | ||
| 10 | Install in the reverse order. |
