Retrofit CD Drive - AZ82.64-P-0002LWH

Model 213.0 (except 213.088/089), 213.2 (except 213.288/289)

with code 320 (Single CD drive preinstallation)

Model 213.088/089/288/289

with code 320 (Single CD drive preinstallation)

except code 460 (Canada version)

except code 494 (US version)

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove fragrance generator
		With CODE P21 (Air quality package)	AR83.40-P-0200LW
2	Remove glove box

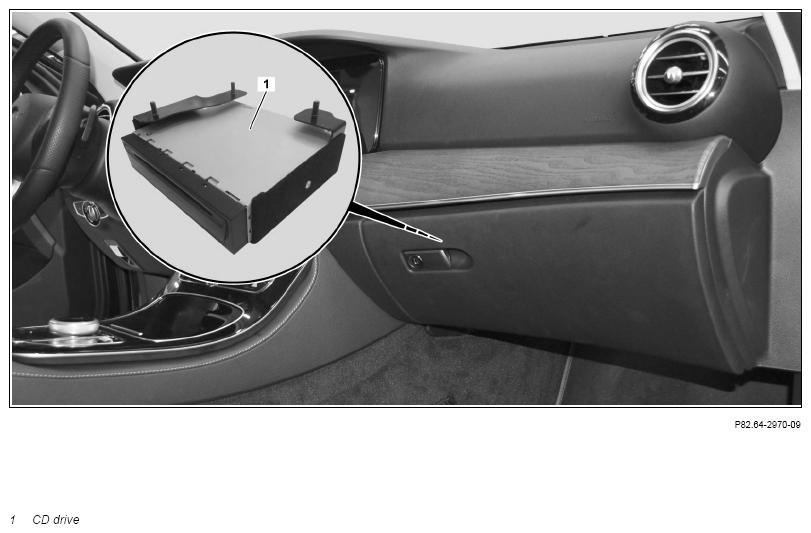

		The electrical wiring harness for the CD drive (1) is fixed in place before the glove compartment housing on the instrument panel cross member.	AR68.10-P-1402LWE
	Install
3	Produce a drilling template for the CD drive bracket (1)	Model 213.### 1#	AZ82.64-P-0002-04LWE
		Model 213.### 2#	AZ82.64-P-0002-04LWR
4	Fabricate adhesive film cutting template for CD drive (1)		AZ82.64-P-0002-05LWE
5	Use cutting template to cut adhesive film to size
6	Prepare glove box for installation of CD drive (1)	Model 213.### 1#	AZ82.64-P-0002-08LWE
		Model 213.### 2#	AZ82.64-P-0002-08LWR
7	Prepare holder for CD drive (1) for installation		AZ82.64-P-0002-06LWE
8	Release electrical wiring harness for CD drive (1) from instrument panel cross member
9	Retrofit CD drive (1) in glove box		AZ82.64-P-0002-03LWE
10	Install glove box with CD drive (1)
		Pay attention to installation of lines.	AR68.10-P-1402LWE
11	Install remaining parts
	Update Vehicle Documentation (VeDoc)
12	Attach "CD drive retrofitted as per AN82.64-P-0002LWE note" under field organization texts	On design group 82 and design group 54.
	Check
13	Perform function test	See Owner's Manual.
