Retrofit CD Drive - AZ82.64-P-0002LWG

Model 213.088/089/288/289

as of model year 2018

with code 460 (Canada version)

with code 531 (COMMAND APS)

except code 320 (Single CD drive preinstallation)

except code 334 (Two-way radio retainer in glove compartment)

except code 498 (Japanese version)

except code 830 (China version)

except code P21 (Air quality package)

Model 213.088/089/288/289

as of model year 2018

with code 494 (US version)

with code 531 (COMMAND APS)

except code 320 (Single CD drive preinstallation)

except code 334 (Two-way radio retainer in glove compartment)

except code 498 (Japanese version)

except code 830 (China version)

except code P21 (Air quality package)

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
1	Remove glove box
			AR68.10-P-1402LWE
2	Remove head unit
			AR82.85-P-1101LWE
3	Detach HERMES control unit from holder and place to one side with attached lines
			AR82.95-P-0019LWE
4	Remove COMMAND display
			AR82.85-P-7429LWE
5	Remove bottom paneling for dashboard on driver side
			AR68.10-P-1501LWE
6	Detach driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module	Model 213.088/089/288/289 up to model year 2021	GF54.15-P-1256-49FG
	Wiring diagram for driver-side fuse and relay module	Model 213.088/089/288/289 as of model year 2021	PE54.15-P-2104DDA
		so that electrical fuse 204 (K40/6f204) is accessible.	AR54.15-P-0003LWE
7	Remove entrance plate on driver side
			AR68.30-P-4100LW
	Install
8	Fabricate adhesive film cutting template for CD drive (1)		AZ82.64-P-0002-05LF
9	Use cutting template to cut adhesive film to size
10	Produce cutting template for CD drive (1)		AZ82.64-P-0002-10LWP
11	Fabricate drilling template for CD drive (1)		AZ82.64-P-0002-07LWP
12	Prepare glove box for installation of CD drive (1)		AZ82.64-P-0002-08LWP
13	Make cutout in glove compartment housing		AZ82.64-P-0002-11LWP
14	Retrofit wiring harness for CD drive (1)		AZ82.64-P-0002-01LWE
		Left footwell ground point	*BA00.19-P-1024-02A
15	Insert a 5 A fuse into the f204 slot of the driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module	Model 213.088/089/288/289 up to model year 2021	GF54.15-P-1256-49FG
	Wiring diagram for driver-side fuse and relay module	Model 213.088/089/288/289 as of model year 2021	PE54.15-P-2104DDA
16	Place glove box in front passenger footwell
17	Retrofit CD drive (1) in glove box		AZ82.64-P-0002-03LWR
18	Attach absorber fleece sheets to the glove box
19	Install glove box with CD drive (1)
		Pay attention to installation of lines.	AR68.10-P-1402LWE
20	Install remaining parts
	Update Vehicle Documentation (VeDoc)
21	Enter special equipment in online vehicle data card	Code 320 (Single CD drive pre-installation)
22	Attach "CD drive retrofitted as per AN82.64-P-0002LWG note" under field organization texts	On design group 82 and design group 54.
23	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
24	Carry out variant coding using software calibration number (SCN)	Head unit
25	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
26	Perform function test	See Owner's Manual.

Number	Designation			Model 213
BA00.19-P-1024-02A	Left footwell ground point	W34	Nm	10

Part no.	Designation	Quantity

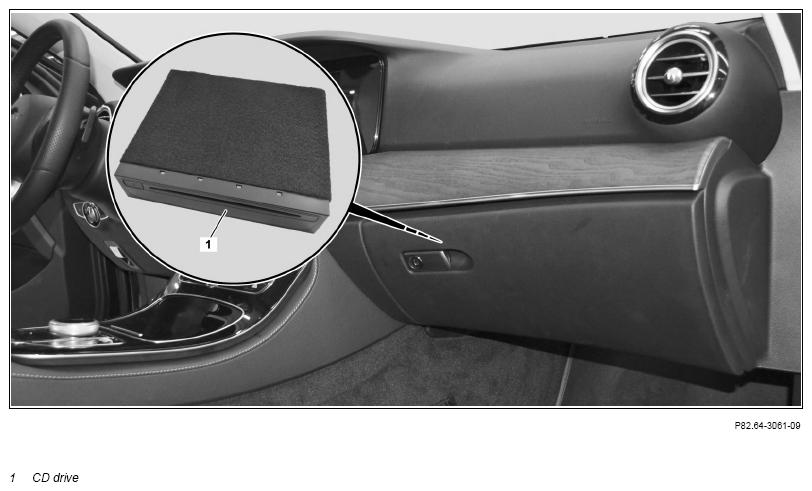

KG 98 (see EPC)	CD drive scope of delivery	1
