Engine Sound, Function - GF82.60-P-0019FG

Model 213 with engine 177, 256, 276.823 up to model year 2021 except code B63 (Engine sound via speakers)

Model 213 up to model year 2021 with code B63 (Engine sound via speakers)

Courtesy of MERCEDES-BENZ USA

Function requirements, general

• Engine running.

Engine sound

The engine sound function simulates the sound of an engine and exhaust system, as this cannot be heard completely in its original form within the vehicle interior. Here, the driving condition and the engine load are taken into consideration. The simulated sound is output via the speaker system, even when no audio source is active. When audio output is active, the emitted tones are expanded with the simulated sound.

The driving condition is defined on the basis of the following signals, which are transmitted by the powertrain control unit via the drive CAN:

• Transmission mode selection (transmission 725)
• Engaged gear range (transmission 725)
• Vehicle speed
• Engine torque

The engine load is defined on the basis of the following signals, which are transmitted by the ME-SFI control unit via the drive CAN:

• Engine running status
• Engine speed

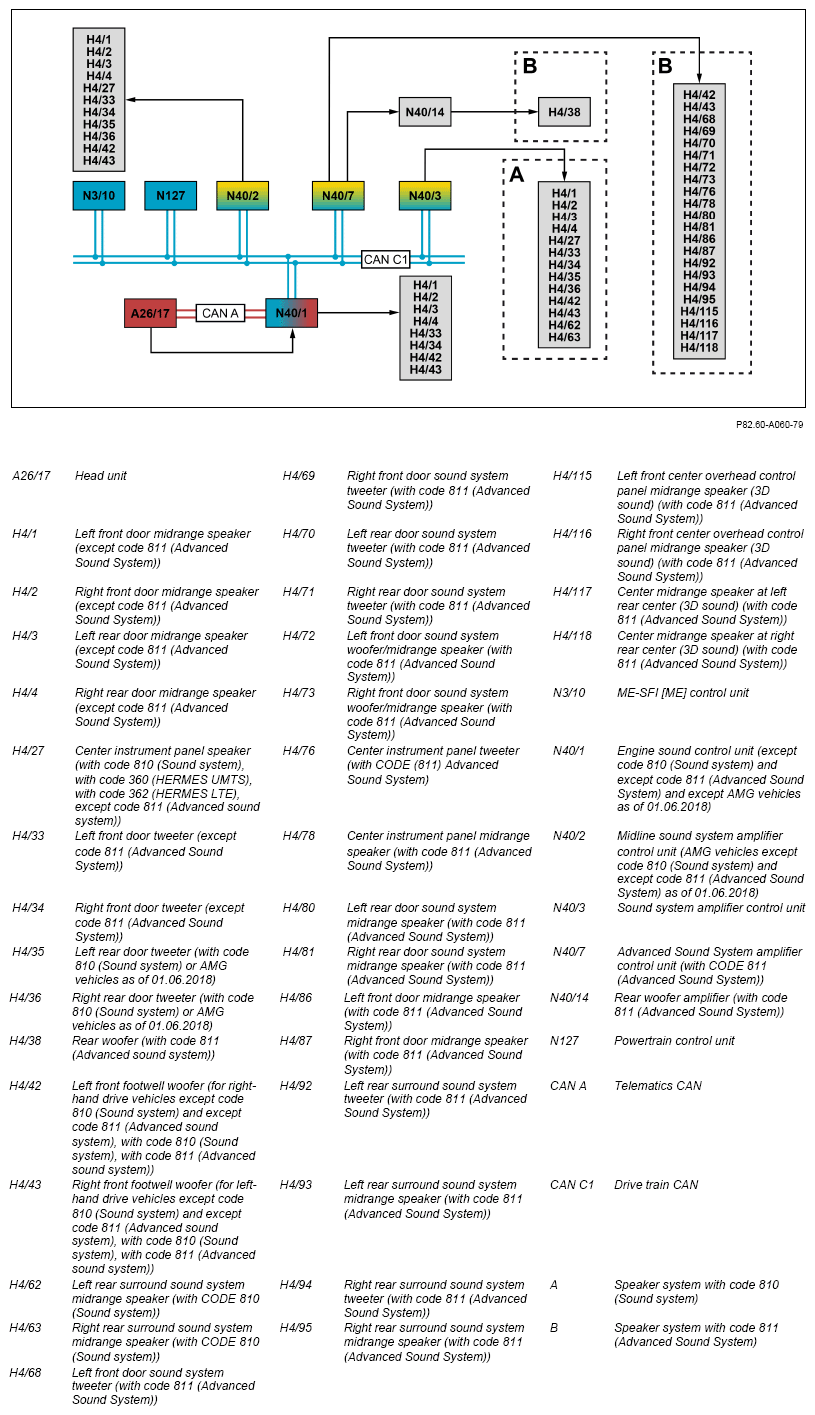

Depending on the vehicle equipment, one of the following control units calculates the corresponding sound signals:

• Engine sound control unit (except code 810 (Sound system) and except code 811 (Advanced Sound System) and except AMG vehicles as of 01.06.2018)
• Midline sound system amplifier control unit (AMG vehicles except code 810 (Sound system) and except code 811 (Advanced Sound System) as of 01.06.2018)
• Sound system amplifier control unit (with code 810 (Sound system))
• Advanced Sound System amplifier control unit (with CODE 811 (Advanced Sound System))

Vehicles except code 810 (Sound system) and except code 811 (Advanced Sound System) and except AMG vehicles as of 01.06.2018

The engine sound control unit actuates the following speakers directly:

• Left front door midrange speaker
• Right front door midrange speaker
• Left rear door midrange speaker
• Right rear door midrange speaker
• Left front door tweeter
• Right front door tweeter
• Left front footwell woofer (for right-hand drive vehicles)
• Right front footwell woofer (for left-hand drive vehicles)

AMG vehicles except code 810 (Sound system) and except code 811 (Advanced Sound System) as of 01 06 2018

The Midline sound system amplifier control unit actuates the following speakers directly:

• Left front door midrange speaker
• Right front door midrange speaker
• Left rear door midrange speaker
• Right rear door midrange speaker
• Center instrument panel speaker
• Left front door tweeter
• Right front door tweeter
• Left rear door tweeter
• Right rear door tweeter
• Left front footwell woofer
• Right front footwell woofer

Vehicles with code 810 (Sound system)

The sound system amplifier control unit actuates the following speakers directly:

• Left front door midrange speaker
• Right front door midrange speaker
• Left rear door midrange speaker
• Right rear door midrange speaker
• Center instrument panel speaker
• Left front door tweeter
• Right front door tweeter
• Left rear door tweeter
• Right rear door tweeter
• Left front footwell woofer
• Right front footwell woofer

Vehicles with code 811 (Advanced Sound System)

The Advanced Sound System amplifier control unit actuates the following speakers directly:

• Rear woofer
• Left front footwell woofer
• Right front footwell woofer
• Left front door sound system tweeter
• Right front door sound system tweeter
• Left rear door sound system tweeter
• Right rear door sound system tweeter
• Left front door sound system woofer/midrange speaker
• Right front door sound system woofer/midrange speaker
• Center instrument panel tweeter
• Center instrument panel midrange speaker
• Left rear door sound system midrange speaker
• Right rear door sound system midrange speaker
• Left front door midrange speaker
• Right front door midrange speaker
• Left rear surround sound system tweeter
• Left rear surround sound system midrange speaker
• Right rear surround sound system tweeter
• Right rear surround sound system midrange speaker
• Left front center overhead control panel midrange speaker (3D sound)
• Right front center overhead control panel midrange speaker (3D sound)
• Left center rear center midrange speaker (3D sound)
• Right center rear center midrange speaker (3D sound)

	Electrical function schematic for speaker system		PE82.62-P-2300-97DBA
	Overview of system components, telematics		GF82.85-P-9999FG
