Remove/Install Guide Tube For Roller Sun Blind Drive Cable - AR77.21-P-0232LWE
Model 213
with code 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove roller sun blind at rear | AR77.21-P-0201LWE | |

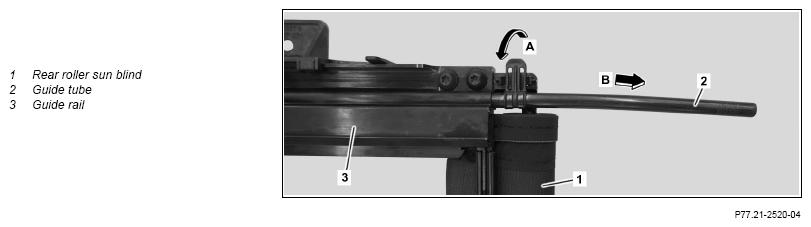

| 2 | Turn guide tube (2) in direction of arrow (arrow A) and pull out guide tube (3) (arrow B) | ||
| 3 | Install in the reverse order |
