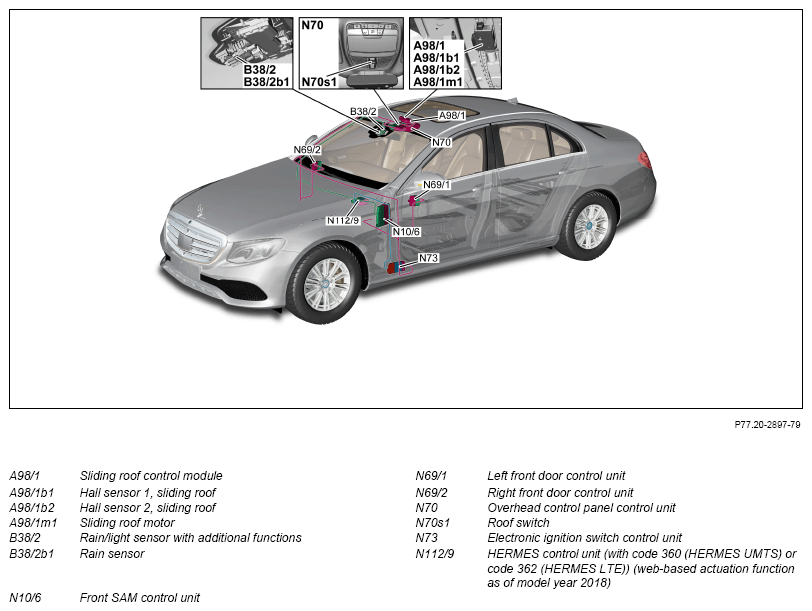

Overview Of System Components For Electric Power Sliding Roof - GF77.20-P-9989FG
Model 213
up to model year 2021
with code 414 (Electric sunroof, glass version)
| Component description for sliding roof control module | A98/1 | GF77.20-P-4108FG | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005FG | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| HERMES control unit, component description | Model 213 up to model year 2021 with code 360 (HERMES UMTS) with code 414 (Electric sunroof, glass version) Model 213 up to model year 2021 with code 362 (HERMES communications module LTE) with code 414 (Electric sunroof, glass version) N112/9 |
GF82.85-P-0221FG | |
| Table of contents for function description of electric power sliding roof | GF77.20-P-0991FG |
