4MATIC side output, function - GF28.10-P-1010AVE

MODEL 207 with TRANSMISSION 722.9 with CODE M005 (4MATIC)

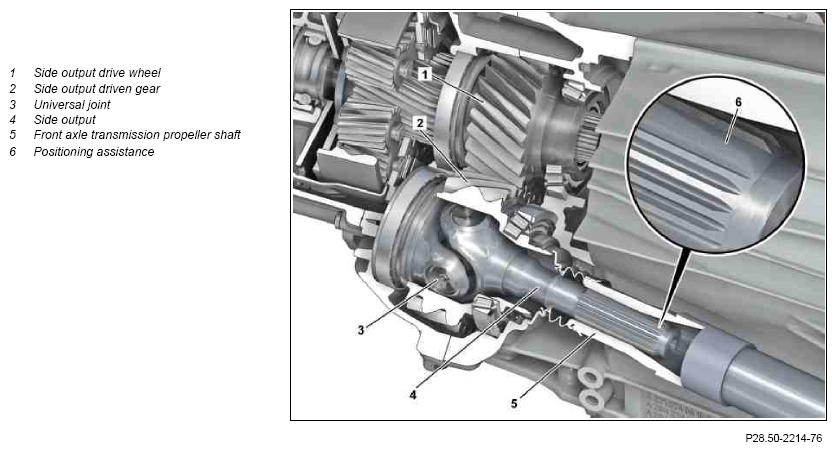

Sectional view of side output

Fig 1: Sectional View Of Side Output

Courtesy of MERCEDES-BENZ USA

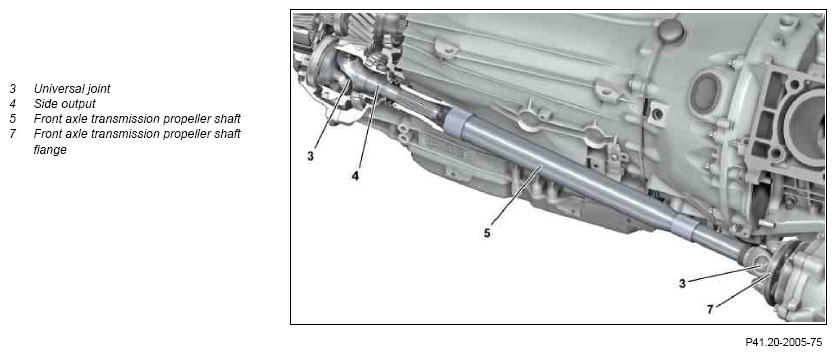

Front axle propeller shaft to front axle transmission

Fig 2: Identifying Front Axle Propeller Shaft To Front Axle Transmission Components

Courtesy of MERCEDES-BENZ USA

Side output 4MATIC, general

Propeller shaft (5) is used for torque transmission from side output (4) of transfer case to front axle transmission. The universal joint (3) of the propeller shaft (5) at transmission end is integrated in the driven gear (2) of the side output (4).

The propeller shaft tube is pushed on to the joint fork of the side output (4) through drive-type splines.

Straight assembly of the universal joints (3) is necessary in order to ensure uniform transfer of rotation.

On the front axle transmission side, the propeller shaft (5) is screwed with the drive pinion of the front axle transmission via a propeller shaft flange (7).

Universal joints (3)

Generally, a universal joint that runs under an angular offset generates an unequal rotary motion.

If the angles that are generated between the axles of the propeller shaft tube and the joint forks are equal and if they lie at the same level, the unequal values of both universal joints are mutually offset. The power take-off speed of the propeller shaft (5) at the front axle transmission is thus equal.
