Overview of system components, automatically controlled all-wheel drive (4MATIC) - GF28.00-P-9998AVE
MODEL 207 with TRANSMISSION 722.9 with CODE M005 (4MATIC)

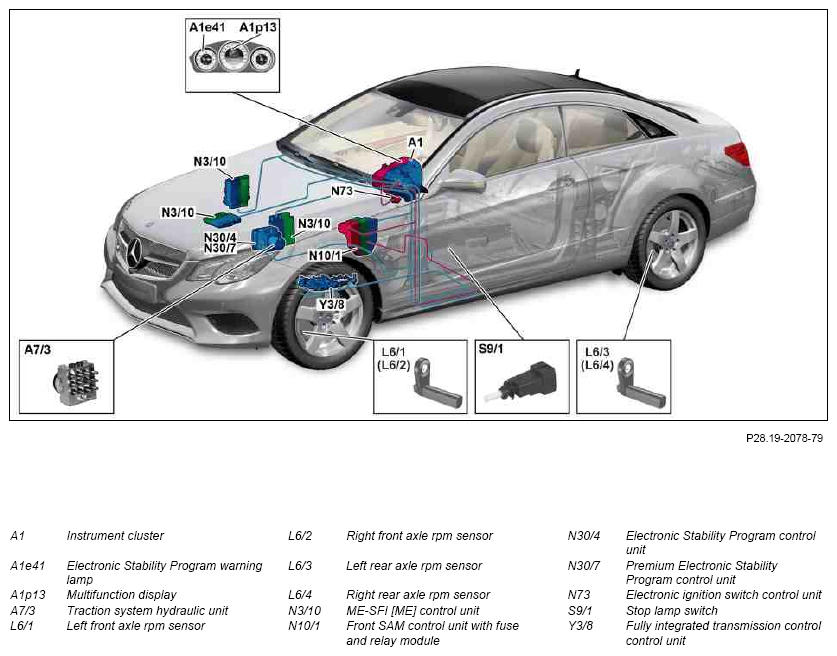

View of model 207

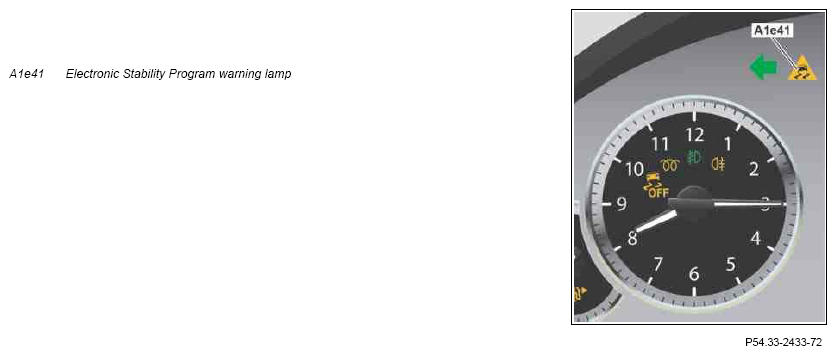

View of instrument cluster display
| Component description for ME-SFI (ME) control unit | MODEL 207 with ENGINE 276.9 with TRANSMISSION 722.9 with CODE M005 (4MATIC) N3/10 |
GF07.61-P-6000MM | |
| MODEL 207 with ENGINE 276.8 with TRANSMISSION 722.9 as of model year 2014 with CODE M005 (4MATIC) N3/10 |
GF07.61-P-6000MMP | ||
| Component description for Electronic Stability Program control unit | MODEL 207 with TRANSMISSION 722.9 up to model year 2014 with CODE M005 (4MATIC) N30/4, N30/7 |
GF42.45-P-5119CA | |
| MODEL 207.3/4 with TRANSMISSION 722.9 as of model year 2014 with CODE M005 (4MATIC) N30/4, N30/7 |
GF42.45-P-5119CAM | ||
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVE |
