Component description for intelligent servo module for DIRECT SELECT - GF27.19-P-4020AHC
TRANSMISSION 722.9 in MODEL 207 as of model year 2014
Location
The intelligent servo module for DIRECT SELECT is mounted on the left of the transmission housing.

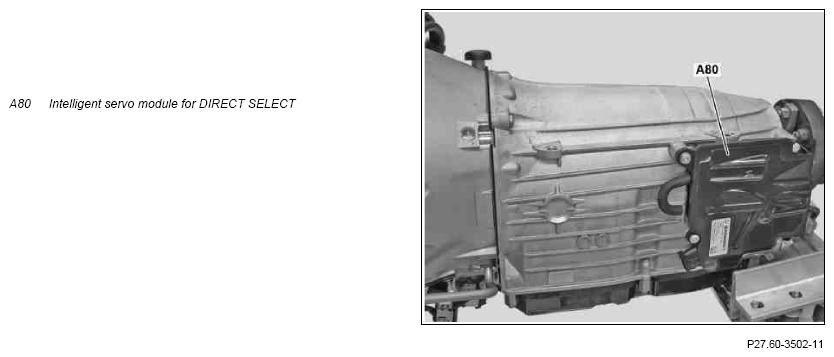

Automatic transmission viewed from left
Task
The task of the intelligent servo module for DIRECT SELECT is subdivided into the following subtasks:
- General
- Input and output signals
General
The driver's drive stage requirement "P, R, N, D" is not transmitted from the control to the transmission via a rod (mechanical connection) but by means of an electronic connection ("Wire"). This electronic connection consists of the DIRECT SELECT lever (S16/13) and the intelligent servo module for DIRECT SELECT. The overall system is called "Shift-by-wire". The intelligent servo module for DIRECT SELECT controls the main motor and the emergency motor.
Input and output signals
Signal inputs and outputs
Direct input signals
- circuit 30
- Circuit 31
- Power supply for emergency motor
The intelligent servo module for DIRECT SELECT measures the position of the eccentric shaft via the eccentric shaft position sensor and the actual position of the range selector lever via the angle sensor. Chassis CAN (CAN E) input signals
For vehicles up to facelift 13
- Wheel speeds and the position of the BAS release switch (A7/7s1) from the Electronic Stability Program control unit (N30/4) (except Code (233) DISTRONIC PLUS) or from the Premium Electronic Stability Program control unit (N30/7) (with code (233) DISTRONIC PLUS)
- Request to engage selector lever position "P" or "N", from electronic ignition lock control unit (N73)
- Feedback "circuit 54 ON" as additional information for parking interlock function, from front SAM control unit with fuse and relay module (N10/1)
Drive train CAN (CAN C) input signals
- Specified position of range selector lever from fully integrated transmission control unit (Y3/8n4)
Chassis CAN output signals
For vehicles up to facelift 13
- Position of DIRECT SELECT gear selector switch to instrument cluster (A1)
Drive train CAN output signals
- Actual position of range selector lever (for "circuit 15 ON") to fully integrated transmission control unit
As of facelift 13 the current chassis CAN will be replaced by chassis CAN 1 (CAN E1). An additional chassis CAN 2 (CAN E2) is used between the instrument cluster (CAN A1) and the front SAM control unit with fuse and relay module.
The ME-SFI [ME] control unit (N3/10) or the CDI control unit (N3/9) is the interface between the drive train CAN and the chassis CAN 1. The interface between chassis CAN 1 and chassis CAN 2 is formed by the front SAM control unit with fuse and relay module.
Body

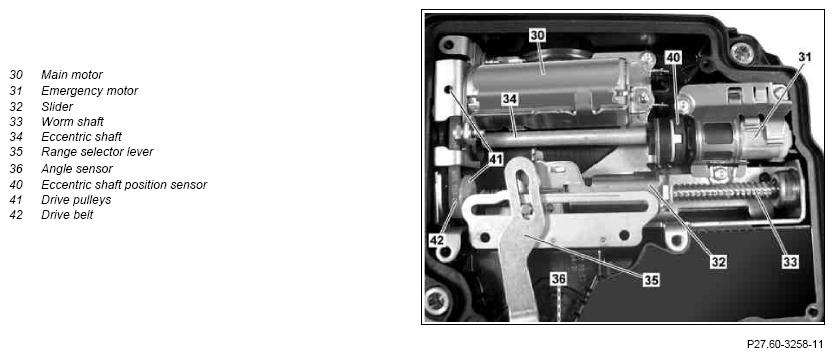

Shown in range selector lever position "N"
Function
The main motor is actuated and the worm shaft is turned via the drive belt and the two drive pulleys. The carriage moves to the required position and the range selector lever assumes the specified position selected.
The actual position is detected by the angle sensor and sent via the drive train CAN to the fully integrated transmission control unit.
With "Circuit 15 ON", the intelligent servo module for DIRECT SELECT transmits the selector lever position sent by the fully integrated transmission control unit to the gear indicator (A1p12). With "circuit 15 OFF" the intelligent servo module sends the selector lever position transmitted from the steering column tube module control unit (N80) to the gear indicator.
With "circuit 15 OFF" and vehicle standstill, selector lever position "P or N" is engaged, as soon as the transmitter key (A8/1) is removed from the electronic ignition lock control unit.
On vehicles with code (889) Keyless Go, the request for selector lever position "P", with "circuit 15 OFF" and the vehicle at a standstill is made as soon as the driver door is opened.
If selector lever position "N" is engaged before "Circuit 15 OFF" and the driver door is opened after "Circuit 15 OFF", selector lever position "N" remains engaged.
| Designation | Unit | Value | Tolerance range | Remarks |
|---|---|---|---|---|
| Intelligent servo module for DIRECT SELECT (A80) | ||||
| Voltage supply | V | 13.5 | ||
| Voltage limits: Minimum | V | 9.0 | ||
| Voltage limits: Maximum | V | 16.0 | ||
| Power consumption: Standby | mA | 200 | ||
| Power consumption: Operation | A | <30 | ||
| Power consumption: Further operation | A | 40 | Maximum 300 ms | |
| Quiescent current | mA | 0.2 | ||
| Reverse polarity protection | No | |||
| Operating temperature range | °C | -40 - 140 | ||
| Adjustment times between gear ranges | ms | 300 | "P and D" | |
| Adjustment times between gear ranges | ms | <150 | "N and R" | |
| Adjustment times between gear ranges | ms | <150 | "N and P" | |
| Adjustment times between gear ranges | ms | <150 | "N and D" | |
| Flash capability/coding capability | Yes/yes |
| Wiring diagram for intelligent servo module (ISM) control unit | PE27.60-P-2101-97EAA | ||
| Wiring diagram for fully integrated transmission control unit | PE27.19-P-2103-97EAA |
