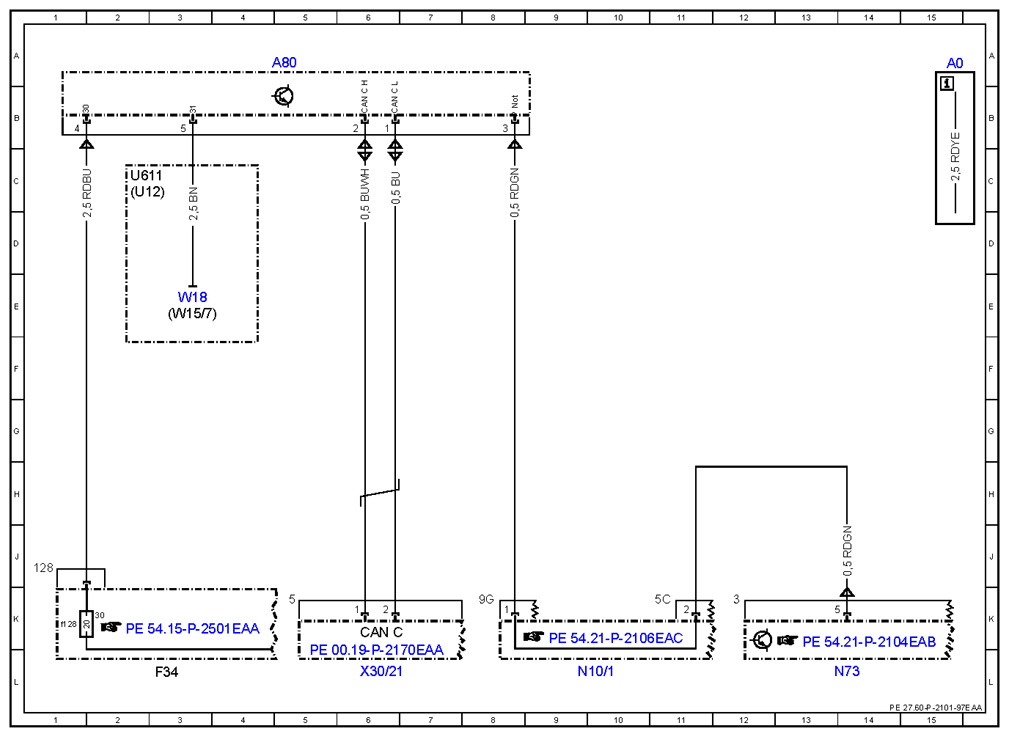

Wiring diagram for intelligent servo module (ISM) control unit - PE27.60-P-2101-97EAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15A |
| A80 | Intelligent servo module for DIRECT SELECT | 5A |
| CAN C | Drive train CAN | 6K |
| F34 | Interior fuse box | 3L |
| F34f128 | Fuse 128 | 1K |
| N10/1 | Front SAM control unit with fuse and relay module | 9L |
| N73 | Electronic ignition switch control unit | 14L |
| U12 | Valid for left-hand drive vehicles | 2C |
| U611 | Valid for Coupe | 2C |
| W15/7 | Right front footwell ground point | 3E |
| W18 | Left front seat crossmember ground point | 3E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 6L |
