Preparations for distance and comparison measurements - AR40.30-P-0401CW

MODEL 204, 207

Shown on model 204.9

Shows model 204.9

Shown on model 204.0 without 4MATIC

Shown here is holding pipe 170 589 00 63 01

21.10.11	Value changed: screw/bolt, rear engine support to frame floor assembly		*BA22.10-P-1005-03E
16.12.11	New holding pipe 164 589 04 63 00 added	The holding pipe 164 589 04 63 00 can be used as an alternative to the holding pipe 170 589 00 63 01.	AR40.30-P-0401-01CW

	Removing
1	Align the vehicle	Align the vehicle horizontally in the longitudinal direction by loading with weights as appropriate. Measure vehicle inclination across the door sills, e.g. using a spirit level
2.1	Remove both lower engine compartment paneling	Model 204.9	AR61.20-P-1105CY
2.2	Remove engine compartment paneling	Model 204.0/2/3, 207 with gasoline engine	AR61.20-P-1105EW
2.3	Remove lower bottom sections of soundproofing	Model 204.0/2/3, 207 with diesel engine	AR94.30-P-5300EW
3	Detach left and right underfloor paneling	Only if the distance measurement and comparative measurement is carried out on the rear axle. Model 204
		Model 207	AR61.30-P-1001EC

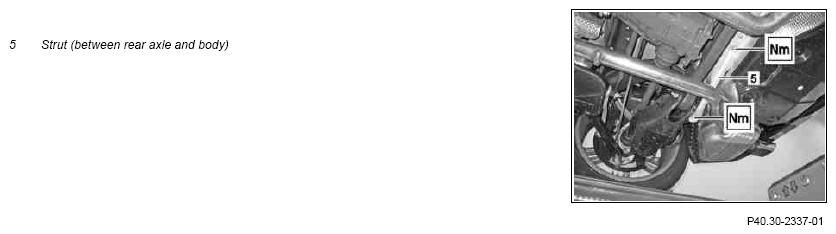

4	Remove strut (5)	Model 204.9 Only if the distance measurement and comparative measurement is carried out on the rear axle.	AR35.10-P-0042-01CWG

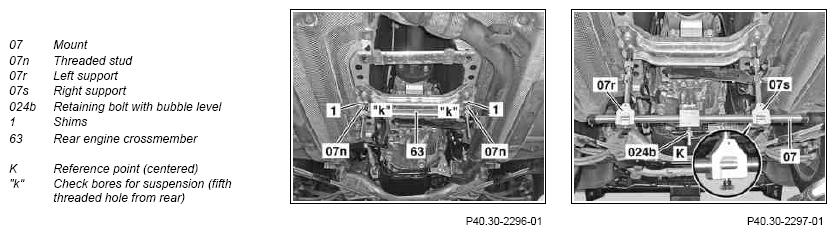

5.1	On the rear engine crossmember (63) remove the two bolts at the fifth threaded hole from the rear	Model 204.0/2/3, 207: On vehicles on which the rear engine crossmember (63) is mounted at this position.
5.2	Cut an M10 thread on the fifth bores from the rear	Model 204.0/2/3, 207: On vehicles on which the rear engine crossmember (63) is not  mounted at this position.

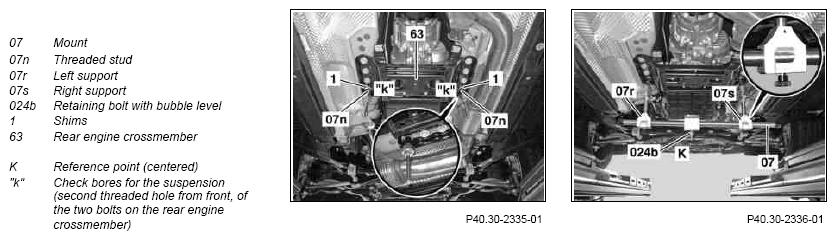

5.3	On the rear engine crossmember (63) remove the two bolts at the second threaded hole from the front	Model 204.9
6	Turn in threaded bolts (07n) of suspension (07) with shims (1)	Use washers (1), to ensure that the threaded stud (07n) fits correctly into each base.
			Fig 5
7	Insert and adjust hanger (07)		AR40.30-P-0401-01CW
			Fig 5
			Fig 10

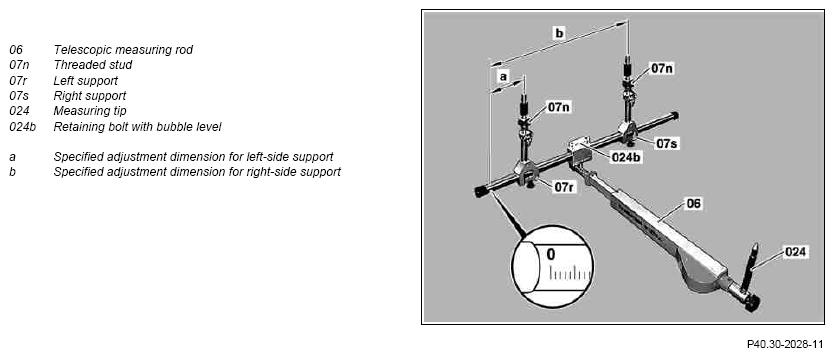

8	Insert telescopic measuring rod (06) with connecting parts onto retaining bolt using bubble level (024b)	Use relevant measuring bolt and measuring tip (024) for the corresponding distance or comparison measurement.
			Fig 9
			Fig 6
			Fig 7
			Fig 8
	Measure
9	Carry out distance and comparison measurements on front and rear axles		AR40.30-P-0402CW
	Install
10	Detach cradle (07) and threaded bolts (07n)		Fig 5
11	Screw in bolts of rear engine crossmember (63)	If the rear bolts on the rear engine crossmember (63) have been unscrewed.
			*BA22.10-P-1005-03E
12	Install strut (5)	Model 204.9 Only when the distance measurement and comparative measurement has been carried out at the rear axle.	AR35.10-P-0042-01CWG
			*BA35.10-P-1007-01N
			*BA35.10-P-1008-01N
13	Install left and right underfloor paneling	Model 204
		Model 207	AR61.30-P-1001EC
14.1	Install both lower engine compartment paneling	Model 204.9	AR61.20-P-1105CY
14.2	Install lower engine compartment paneling	Model 204.0/2/3, 207 with gasoline engine	AR61.20-P-1105EW
14.3	Install lower bottom sections of soundproofing	Model 204.0/2/3, 207 with diesel engine	AR94.30-P-5300EW

Number	Designation		Model 204 except 4MATIC, except model 204.9	Model 204 except 4MATIC, model 204.9	Model 204.9 except 4MATIC
BA22.10-P-1005-03E	Bolt, rear engine support to frame floor assembly	Nm	70	70	60

Number	Designation		Model 204.9 with 4MATIC	Model 207 except 4MATIC	Model 207 4
BA22.10-P-1005-03E	Bolt, rear engine support to frame floor assembly	Nm	60	70	70

Number	Designation		Model 204
BA35.10-P-1007-01N	Nut, strut to body	Nm	25
BA35.10-P-1008-01N	Bolt, strut to rear rubber mount of rear axle carrier	Nm	25
