Remove/install underbody paneling - AR61.30-P-1001EC

MODEL 207

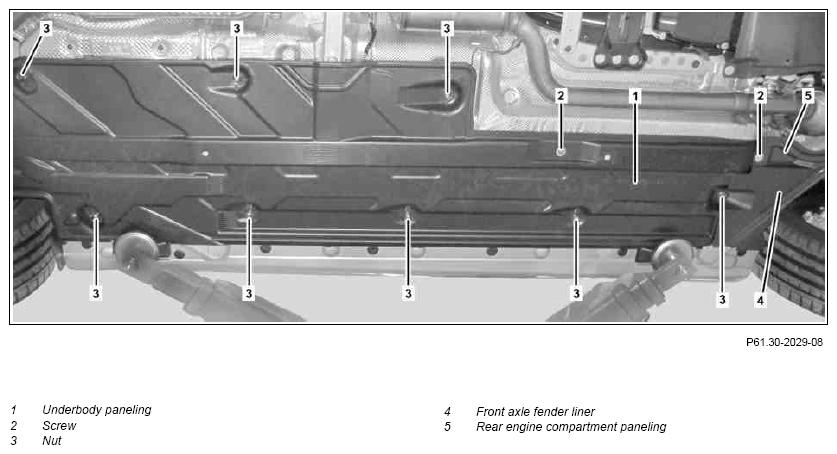

Fig 1: Identifying Underbody Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown without code (481) Underride guard on left underfloor paneling (1)

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift	Adapter kit	Fig 2
2	Remove bolts (2)	Rechargeable drill/screwdriver
3	Unscrew nuts (3)	Nuts (3) remain on underfloor paneling (1). Rechargeable drill/screwdriver
4.1	Lower rear engine compartment paneling (5) and front axle fender liner (4).	Engine 271, 272, 273 The rear engine compartment paneling (5) may be designed differently depending on the engine and version
4.2	Lower bottom section of soundproofing and front axle fender liner (4)	Engine 642, 651 The bottom section of soundproofing may can be designed differently depending on the engine and equipment
5	Remove underfloor paneling (1)
6	Install in the reverse order

Fig 2: Identifying Adapter Kit (203 589 02 31 00)

Courtesy of MERCEDES-BENZ USA
