Component description for tire pressure monitor control unit - GF40.15-P-5124CA
MODEL 207.3/4 up to model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader
Illustrated on model 207.3
Location

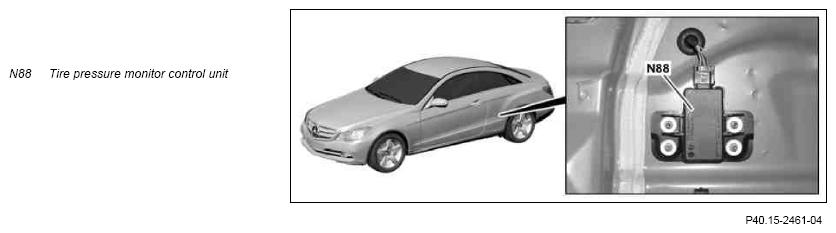

The control unit tire pressure monitoring is located on the vehicle floor above the rear axle.
Task
The tire pressure monitoring system control unit has the following tasks:
- Reading in of signals
- Evaluation of input factors
- Transfer of information
Reading in of sensors and signals
The input factors are read in via the following connections:
- Two-way radio
- Chassis CAN (CAN E)
Two-way radio
The signals from the following sensors are read in via radio:
- Left front tire pressure sensor (A69/1)
- Right front tire pressure sensor (A69/2)
- Left rear tire pressure sensor (A69/3)
- Right rear tire pressure sensor (A69/4)
Chassis CAN
The following signals are read in over the chassis CAN:
- Instrument cluster (A1):
- Vehicle speed signal
- Outside temperature
- Electronic ignition lock control unit (N73):
- Circuit 15 terminal status
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor whereupon the information is then sent.
Transfer of information
The tire pressure monitor control unit sends information over the chassis CAN to the instrument cluster, this information is then shown as menu displays and as warning messages.
Body
The central antenna is integrated in the tire pressure monitor control unit.
| Wiring diagram for tire pressure monitor control unit | N88 | PE40.15-P-2101-97EAA |
