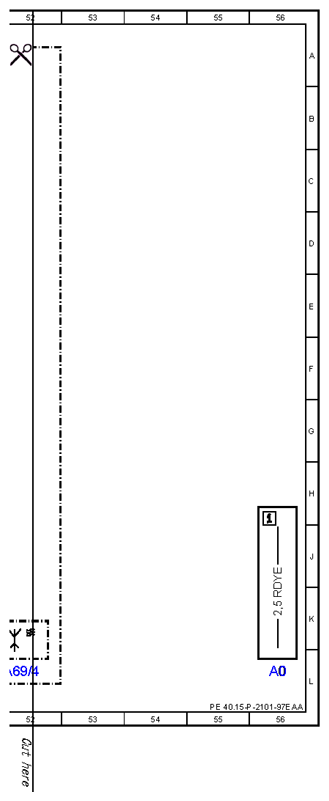

| A0 |
Color code key |
56L |
| A69/1 |
Left front tire pressure sensor |
10L |
| A69/1 |
Left front tire pressure sensor |
23L |
| A69/1 |
Left front tire pressure sensor |
35L |
| A69/1 |
Left front tire pressure sensor |
49L |
| A69/2 |
Right front tire pressure sensor |
11L |
| A69/2 |
Right front tire pressure sensor |
24L |
| A69/2 |
Right front tire pressure sensor |
36L |
| A69/2 |
Right front tire pressure sensor |
50L |
| A69/3 |
Left rear tire pressure sensor |
12L |
| A69/3 |
Left rear tire pressure sensor |
25L |
| A69/3 |
Left rear tire pressure sensor |
37L |
| A69/3 |
Left rear tire pressure sensor |
51L |
| A69/4 |
Right rear tire pressure sensor |
13L |
| A69/4 |
Right rear tire pressure sensor |
26L |
| A69/4 |
Right rear tire pressure sensor |
38L |
| A69/4 |
Right rear tire pressure sensor |
52L |
| CAN B |
Interior CAN |
7K |
| CAN B |
Interior CAN |
20K |
| CAN E2 |
Chassis CAN 2 |
47K |
| CAN E2 |
Chassis CAN 2 |
33K |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
39A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
17L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
29L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
42L |
| N10/2f70 |
Fuse 70 |
3L |
| N10/2f70 |
Fuse 70 |
16L |
| N10/2f70 |
Fuse 70 |
28L |
| N10/2f70 |
Fuse 70 |
41L |

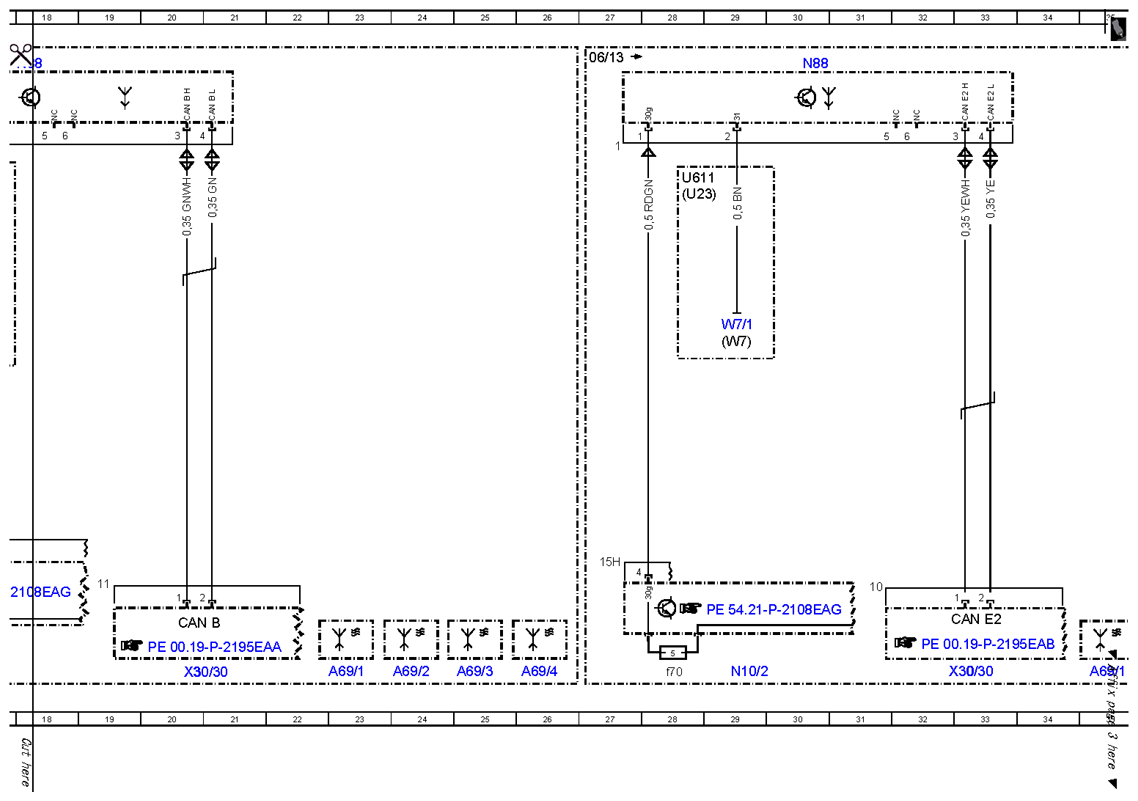

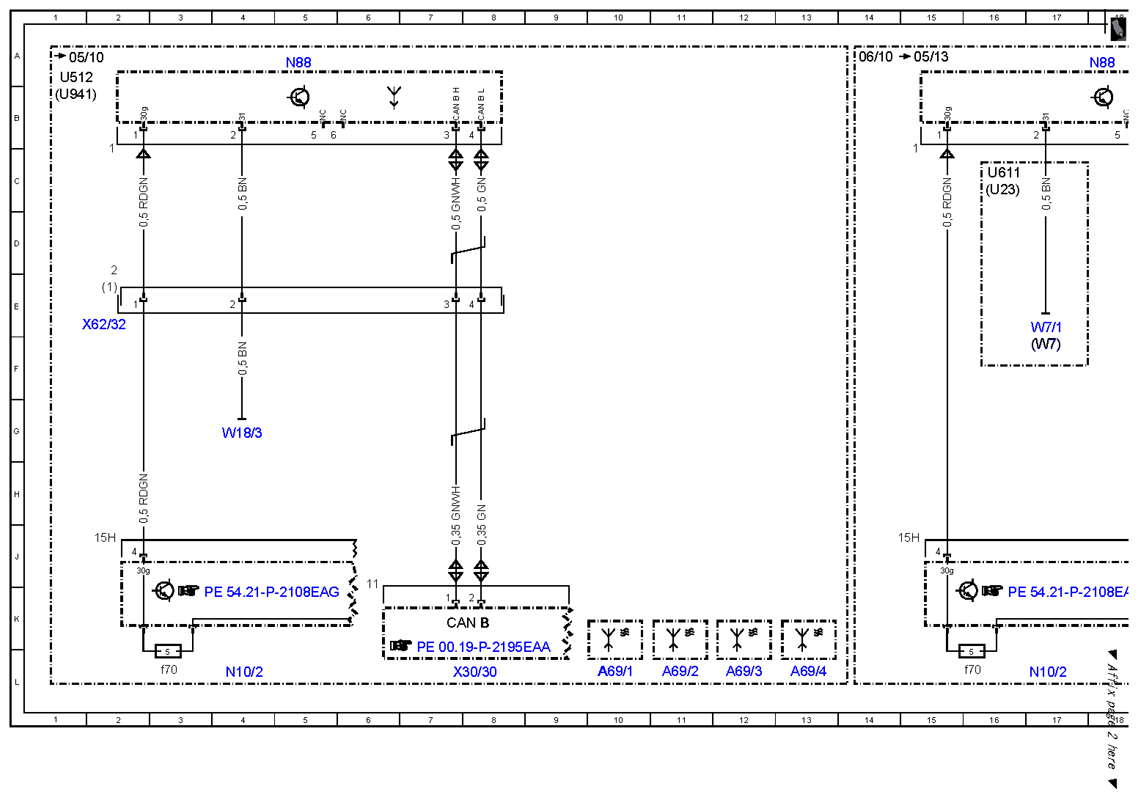

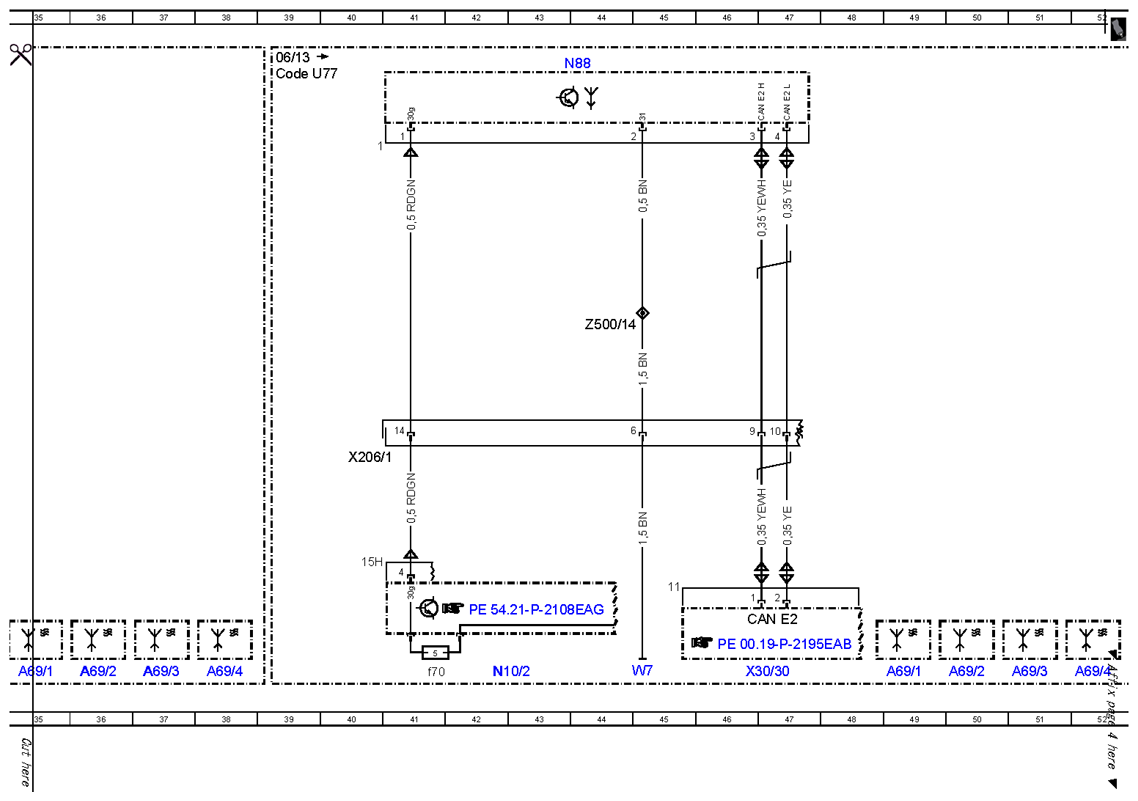

| N88 |
Tire pressure monitor control unit |
5A |
| N88 |
Tire pressure monitor control unit |
18A |
| N88 |
Tire pressure monitor control unit |
30A |
| N88 |
Tire pressure monitor control unit |
44A |
| U23 |
Valid for convertibles |
28C |
| U23 |
Valid for convertibles |
16C |
| U512 |
Valid for electronic level control |
1A |
| U611 |
Valid for Coupe |
28C |
| U611 |
Valid for Coupe |
16C |
| U941 |
Valid without electronic level control |
1B |
| W18/3 |
Left front seat crossmember ground point 2 |
4G |
| W7 |
Right wheelhouse trunk ground point |
17F |
| W7 |
Right wheelhouse trunk ground point |
45L |
| W7 |
Right wheelhouse trunk ground point |
29F |
| W7/1 |
Right taillamp trunk ground point |
17E |
| W7/1 |
Right taillamp trunk ground point |
29E |
| X206/1 |
AdBlue® tank module electrical connector |
40H |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
8L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
20L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
46L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
33L |
| X62/32 |
Rear axle electrical connector, left distributor |
2E |
| Z500/14 |
Circuit 31 connector sleeve |
44E |
