Remove and install center air vent - AR83.10-P-4503EC

MODEL 207

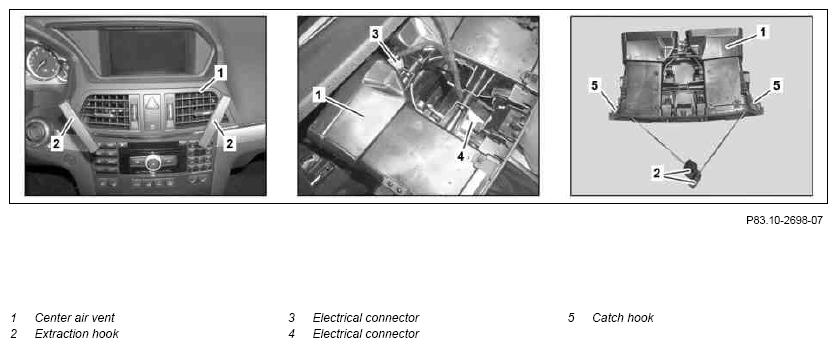

Fig 1: Identifying Center Air Vent Remove/Install Components - Shown On Model 207

Courtesy of MERCEDES-BENZ USA

Shown on model 207 up to model year 2014

Shown on model 207 as of model year 2014

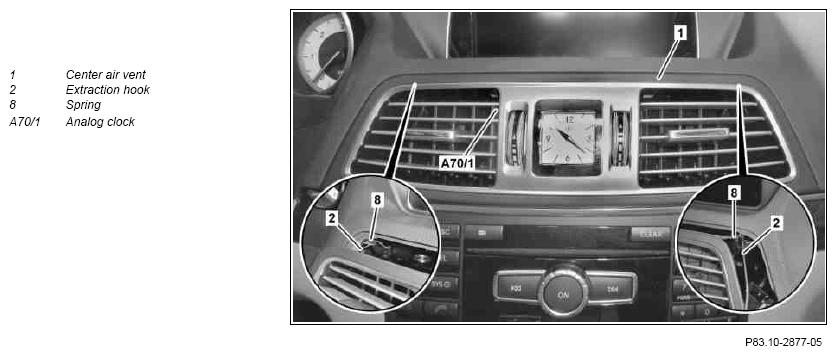

Fig 2: Identifying Center Air Vent Remove/Install Components - Shown On Model 207 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

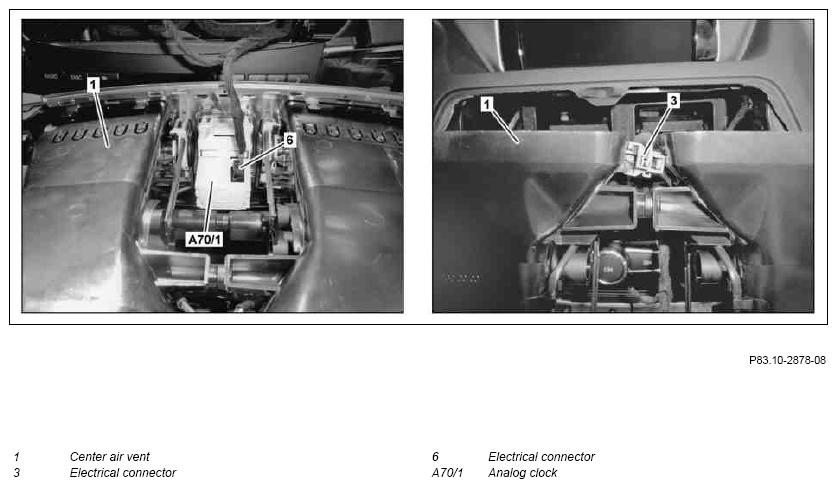

Fig 3: Identifying Center Air Vent Remove/Install Components - Shown On Model 207 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on model 207 as of model year 2014

	Remove/install
1	Insert extraction hooks (2) with tip pointing upwards as shown into openings in upper area of center air vent (1) and release catch hooks (5)	Removal:  Swiveling extraction hooks (2) outwards releases catch hooks (5).
		Extraction hook	Fig 4
2	Pull center air vent (1) out of instrument panel until electrical connectors (3, 4) are accessible	Removal:  On vehicles as of model year 2014 it may be necessary to press down spring (8) with extraction hooks (2).
		Extraction hook	Fig 4
3.1	Disconnect electrical connectors (3, 4) and remove center air vent (1)	MODEL 207 up to model year 2014
3.2	Disconnect electrical connectors (3, 6) and remove center air vent (1)	MODEL 207 as of model year 2014
4	Remove analog clock (A70/1)	MODEL 207 as of model year 2014 When replacing center air vent (1).
			AR54.30-P-1000ECM
5	Install in the reverse order

Fig 4: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
