Remove/install cockpit clock - AR54.30-P-1000ECM

MODEL 207 as of model year 2014

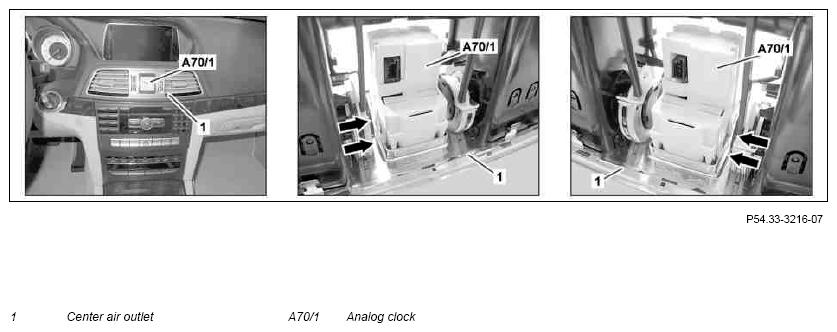

Fig 1: Identifying Cockpit Clock Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove center air vent (1)		AR83.10-P-4503EC
2	Unclip analog clock (A70/1) at the catch hooks (arrows) outward out of center air vent (1)
3	Install in the reverse order
4	Adjust time on the analog clock (A70/1) using the left multifunction steering wheel button group and right multifunction steering wheel button group	MODEL 207 as of model year 2014 with CODE 510 (Audio 20 with CD changer) MODEL 207 as of model year 2014 with CODE 523 (MB Audio 20 radio) MODEL 207 as of model year 2014 with CODE 528 (COMAND with DVD changer) On vehicles with CODE 512 (COMAND APS incl. DVD changer) or CODE 527 (COMAND APS with single DVD drive (with navigation system)), the time is set automatically.
