Component description for reversing camera control unit - GF54.65-P-5030CAJ
MODEL 207 up to model year 2014 with CODE 218 (Rear view camera) with CODE 498 (Japanese version)
Illustrated on model 207.3

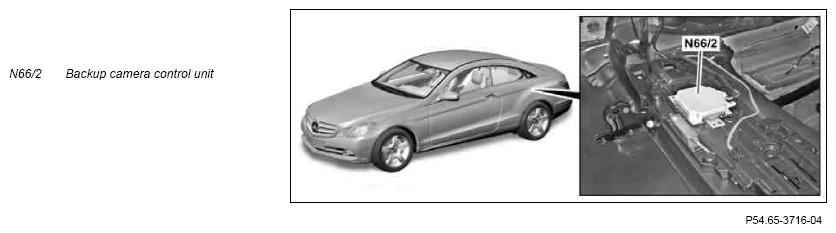

Location
The reversing camera control unit is behind the rear bench seat in the trunk.
Task
The reversing camera control unit has the following tasks:
- Reading in of signals
- Evaluation of input factors
- Actuation of components
Reading in of signals
The input factors are read in via the following connections:
- Direct line
- Interior CAN (CAN B)
Direct line
The following signal is read in via a direct line:
- Color Video Baseband Signal (CVBS) signal from reversing camera (B84/3)
Interior CAN
The signals are read in by the reversing camera control unit over the interior CAN.
The functions that use these signals are described in the individual function descriptions.
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
Components are actuated with the following line:
- Direct line
Direct line
The following components are actuated via a direct line:
- Backup camera
- COMAND controller unit (A40/3) (CVBS signal)
| Wiring diagram for backup camera control unit | PE54.65-P-2102-97EAA |
