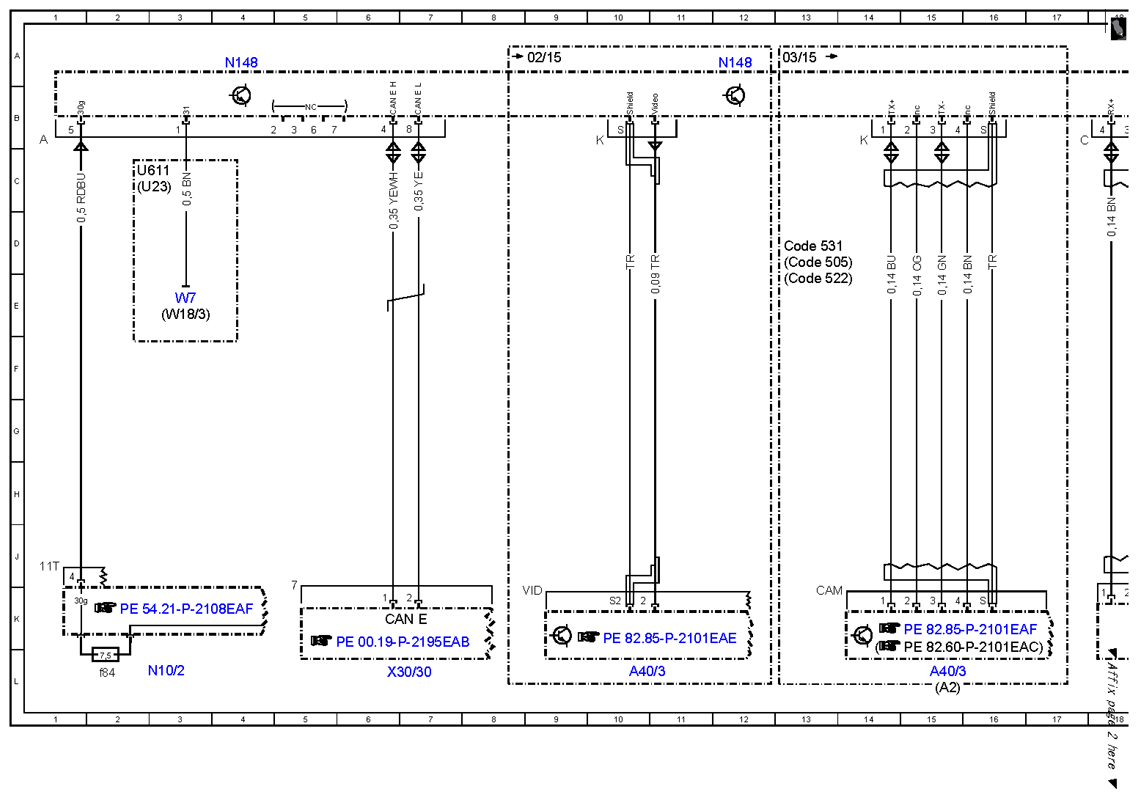

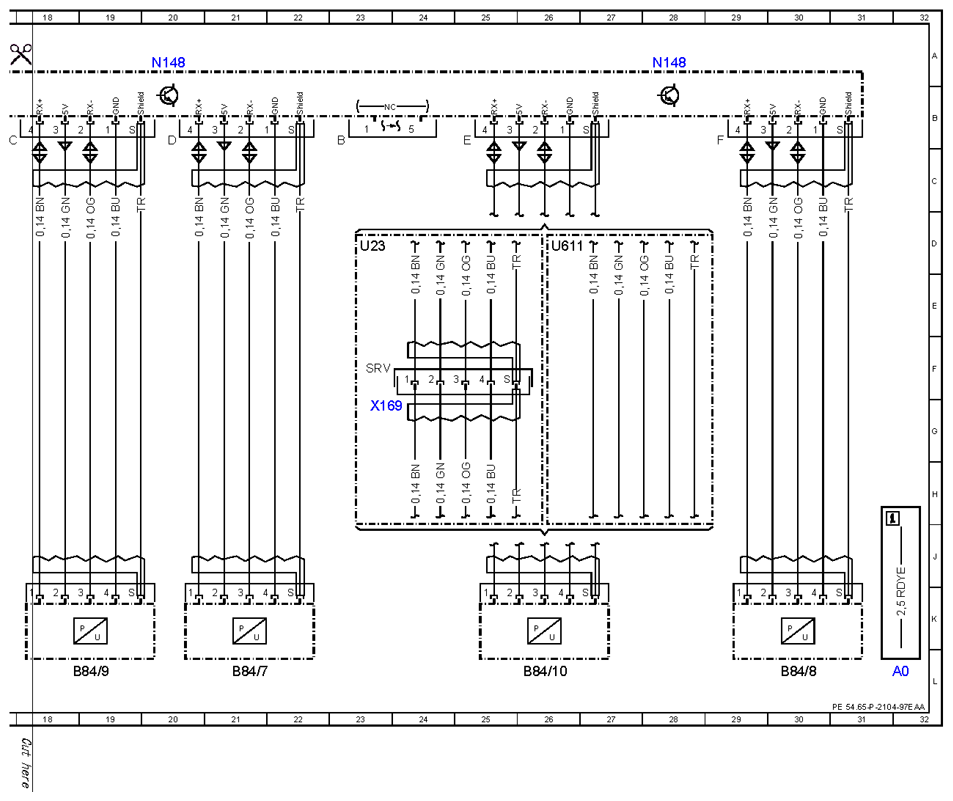

| A0 |
Color code key |
32L |
| A2 |
Radio |
15L |
| A40/3 |
COMAND control unit |
10L |
| A40/3 |
COMAND control unit |
15L |
| B84/10 |
Rear end 360° camera |
26L |
| B84/7 |
Left outside mirror 360° camera |
21L |
| B84/8 |
Right outside mirror 360° camera |
30L |
| B84/9 |
Front end 360° camera |
19L |
| CAN E |
Chassis CAN |
6K |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
13D |
| Code 522 |
Audio 20 radio |
13E |
| Code 531 |
COMAND APS |
13D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f84 |
Fuse 84 |
2L |
| N148 |
360° camera control unit |
4A |
| N148 |
360° camera control unit |
12A |
| N148 |
360° camera control unit |
20A |
| N148 |
360° camera control unit |
28A |
| U23 |
Valid for convertibles |
2C |
| U23 |
Valid for convertibles |
23D |
| U611 |
Valid for Coupe |
2C |
| U611 |
Valid for Coupe |
26D |
| W18/3 |
Left front seat crossmember ground point 2 |
3E |
| W7 |
Right wheelhouse trunk ground point |
3E |
| X169 |
Backup camera electrical connector |
23G |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
6L |
