Remove/install antenna - AR82.70-P-8951EC
MODEL 204.3, 207.3

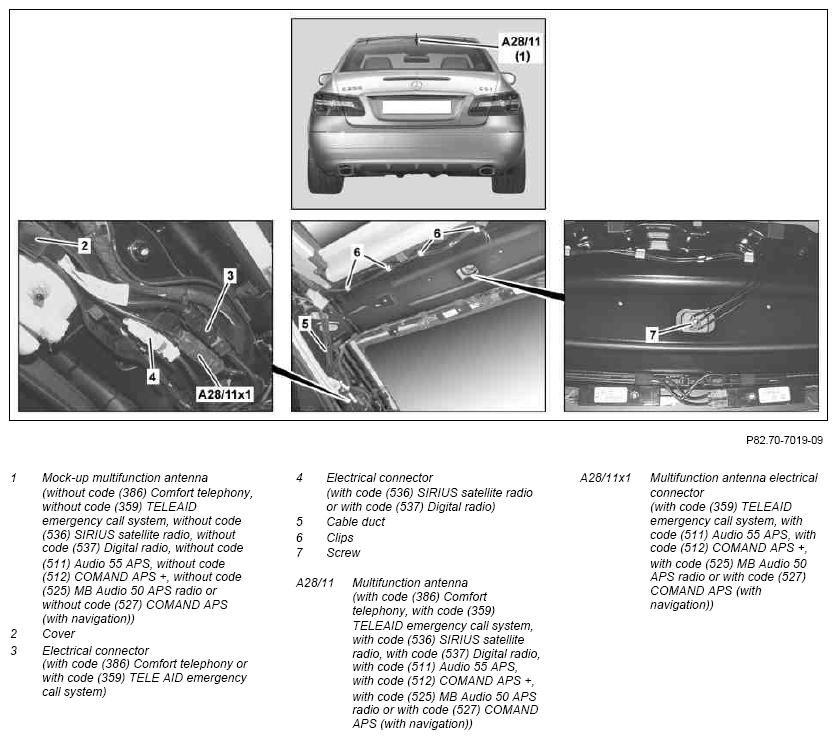

Multifunction antenna and mock-up multifunction antenna
Shown on model 207.3
| Remove/install | |||
| 1 | Remove headliner | AR68.30-P-4300EC | |
| 2 | Disconnect electrical connector (3) | With code (386) Comfort telephony or with code (359) TELE AID emergency call system | |
| 3 | Disconnect electrical connector (4) | With code (536) SIRIUS satellite radio or with code (537) Digital radio | |
| 4 | Detach multifunction antenna electrical connector (A28/11x1) | With code (359) TELE AID emergency call system, with code (511) Audio 55 APS, with code (512) COMAND APS +, with code (525) MB Audio 50 APS radio or with code (527) COMAND APS (with navigation) | |
| 5 | Unclip cover (2), expose wiring harnesses of multifunction antenna (A28/11) at cable duct (5) and detach at clamps (6) | Not for mock-up multifunction antennas (1) | |
| Figure | |||
| 6 | Remove screw (7) and route multifunction antenna (A28/11) or mock-up multifunction antenna (1) upwards and out of the roof paneling | *BA82.62-P-1001-01D | |
| 7 | Install in the reverse order |
ANTENNA
| Number | Designation | Model 204 | Model 207 | |
|---|---|---|---|---|
| BA82.62-P-1001-01D | Screw, antenna base to vehicle roof | Nm | 3 | 3 |
