Remove/install headliner - AR68.30-P-4300EC

MODEL 204.3, 207.3

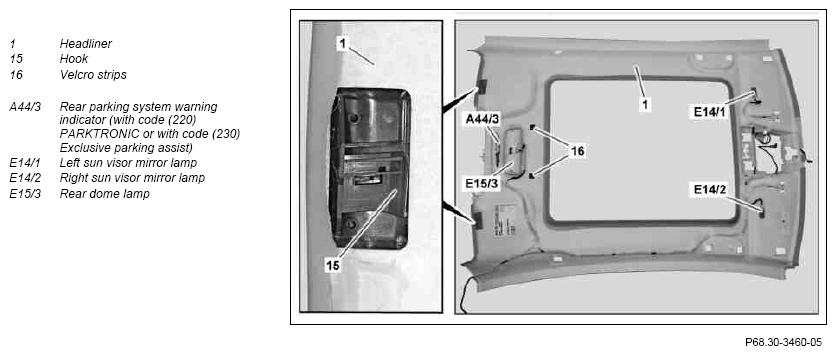

Fig 1: Identifying Headliner Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown with CODE (413) Panorama sliding roof

Illustrated with CODE (413) Panorama sliding roof

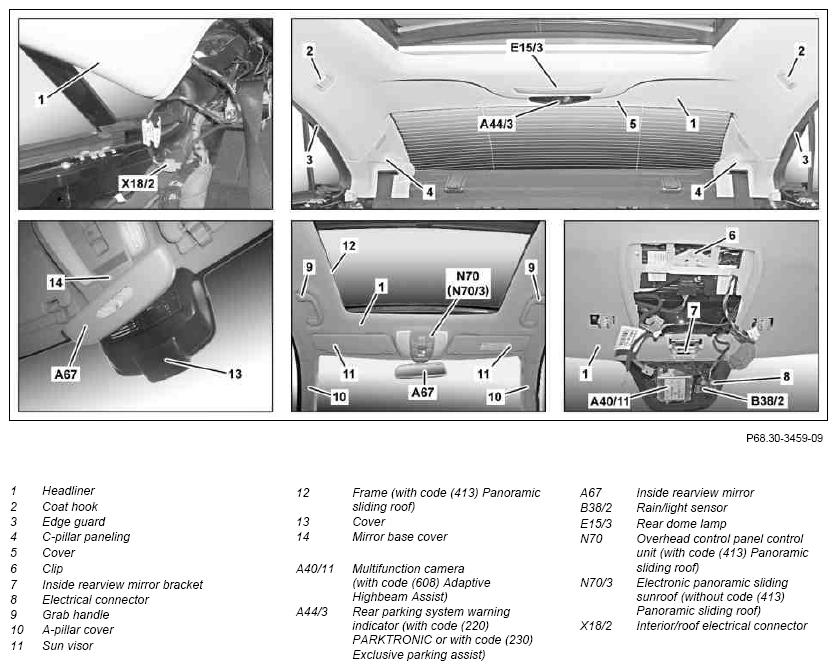

Fig 2: Identifying Headliner Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left and right paneling from C-pillars (4)	Lay both panelings on C-pillars (4) down to side with seat belts attached.	AR68.30-P-4490EC
2	Disconnect interior/roof electrical connector (X18/2)
3	Remove coat hanger hook (2)
4	Remove grab handles (9) on roof
5	Remove paneling from A-pillars (10)	Assembly wedge	Figure
6	Remove sun visor (11) together with counterbearing
7.1	Remove overhead control panel control unit (N70) and cover from mirror base (14)	With code (413) panorama sliding roof	AR82.20-P-1000CW
7.2	Remove overhead control panel (N70/3) and mirror base cover (14)	without code (413) Panoramic sliding sunroof	AR82.20-P-1000CW
8	Remove inside rearview mirror (A67)
9	Unclip and remove cover (13)	Assembly wedge	Figure
10	Disconnect electrical connector (8) from rain/light sensor (B38/2)
11	Remove inside rearview mirror bracket (7)
12	Remove clip (6)	Clip remover	Figure
13	Move backrest in driver seat and passenger seat down as far as possible	This gap is needed so that the headliner (1) can be taken out of the vehicle.
14	Unhook headliner (1) from frame (12)	Only with code (413) Panoramic sliding roof
15	Open velcro strips (16)	On model 204.3, 207.3 without code (413) Panoramic sliding roof, the velcro strips (16) are located one after another in the roor center.
16	Slide headliner (1) toward rear until hooks (15) can move out of the roof paneling and place headliner (1) on seats	Use aid of helper.
17	Guide headliner (1) out of interior compartment	Use aid of helper. Ensure that the edge areas of the headliner (1) are not damaged.
18	Remove left sun visor mirror lamp (E14/1) and right sun visor mirror lamp (E14/2)	Only when replacing headliner (1).
19	Remove rear dome lamp (E15/3)	Only when replacing headliner (1).
		Assembly wedge	Figure
20	Remove rear parking system warning display (A44/3)	Only when replacing headliner (1) and only on vehicles with code (220) PARKTRONIC or with code (230) Exclusive parking assist.
		Assembly wedge	Figure
21	Take off cover (5)	Only when replacing headliner (1).
22	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
