Retrofit iPod interface - AZ82.60-P-0014EC

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 518 (Media Interface)

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 511 (Audio 50 APS with DVD changer) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 518 (Media Interface)

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 518 (Media Interface)

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 518 (Media Interface)

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 525 (MB Audio 50 APS radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 518 (Media Interface)

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 088 (Control code NTG 4.5) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 518 (Media Interface)

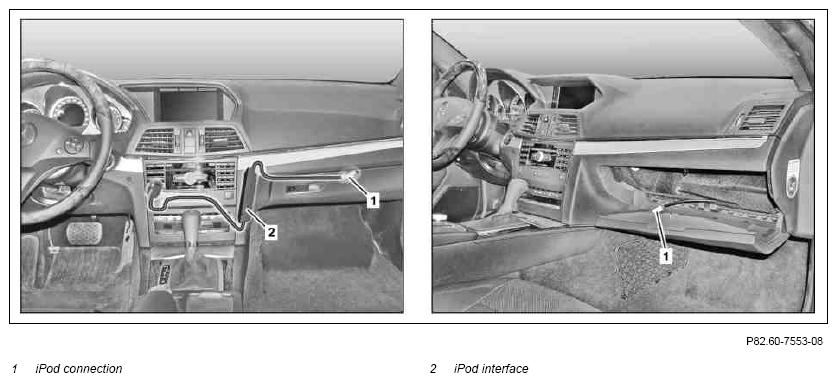

Fig 1: Identifying Ipod Interface And Connection

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove radio or COMAND controller unit
			AR82.60-P-7502EW
2	Remove glove box
			AR68.10-P-1400EC
	Install
3	Install iPod wiring harness and iPod interface (2)		AZ82.60-P-0014-03EC
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
		Rechargeable screwdriver, rechargeable drill
4	Install remaining parts
5	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "iPod interface retrofitted as per AZ82.60-P-0014EC " under field organization texts to design group 82.
6	Connect iPod to iPod connection (1) and perform function check of system	Check functions in vehicle as per the iPod operating instructions.
