Retrofit Mercedes-Benz InCar Internet - AZ82.85-P-0005EC

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 830 (China version)

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 088 (Control code NTG 4.5) without CODE 830 (China version)

MODEL 207.3##/4## 1# up to 5/31/12 up to model year 2013 with CODE 528 (COMAND with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 830 (China version)

Routing diagram with code (518) Media interface

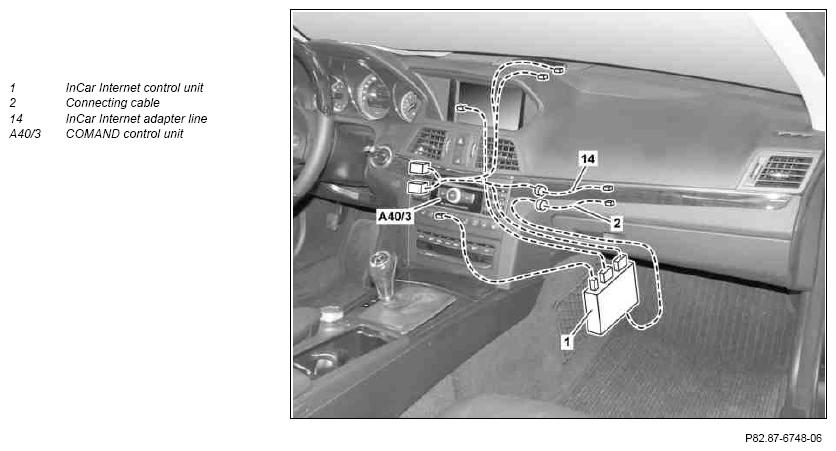

Fig 1: Incar Internet Control Unit Routing Diagram - Code (518)

Courtesy of MERCEDES-BENZ USA

Routing diagram without code (518) Media interface

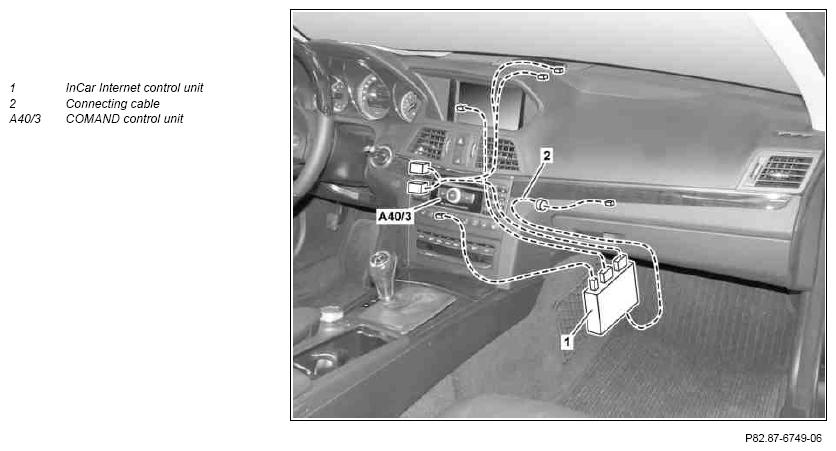

Fig 2: Incar Internet Control Unit Routing Diagram - Without Code (518)

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Move front passenger seat toward rear
2	Remove door sill from front passenger footwell
3	Detach edge guard in area of A-pillar trim and door sill in front passenger footwell
4	Remove paneling on A-pillar in front passenger footwell
5	Remove front right floor covering
6	Remove glove box
			AR68.10-P-1400EC
7	Remove COMAND controller unit (A40/3)	Vehicles with CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 528 (COMAND incl. DVD changer)
		Vehicles with CODE 512 (COMAND APS incl. DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502EW
8	Remove Audio/COMAND display	Vehicles with CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 528 (COMAND incl. DVD changer)
		Vehicles with CODE 512 (COMAND APS incl. DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722EW
	Install
9	Retrofit InCar Internet adapter wiring harness (14)		AZ82.85-P-0005-02EC
10	Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness		AZ82.85-P-0005-06EC
11	Install COMAND controller unit (A40/3)	Vehicles with CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 528 (COMAND incl. DVD changer)
		Vehicles with CODE 512 (COMAND APS incl. DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502EW
12	Install Audio/COMAND display	Vehicles with CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 528 (COMAND incl. DVD changer)
		Vehicles with CODE 512 (COMAND APS incl. DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722EW
13	Retrofit connecting cable (2)		AZ82.85-P-0005-05EC
		Rechargeable screwdriver, rechargeable drill
14	Install glove box
			AR68.10-P-1400EC
		The connecting cable (2) must be routed into the front passenger footwell when installing the glove box. It is connected at a later stage to the InCar Internet control unit (1).
15	Retrofit InCar Internet control unit (1)		AZ82.85-P-0005-04EC
16	Install remaining parts
17	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Mercedes-Benz InCar Internet retrofitted as per AZ82.85-P-0005EC " under field organization texts to design group 82.
18	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
19	Perform initial startup for InCar Internet with XENTRY	For the initial startup the model series 212 must be entered in the "ICI variant coding" menu item in XENTRY.
20	Disconnect STAR DIAGNOSIS
			AD00.00-P-2000-04A
21	Perform function check of InCar Internet
