Remove/install 360° camera control unit - AR54.30-P-3004EAM
MODEL 207 as of model year 2014 with CODE 501 (360 degree camera)

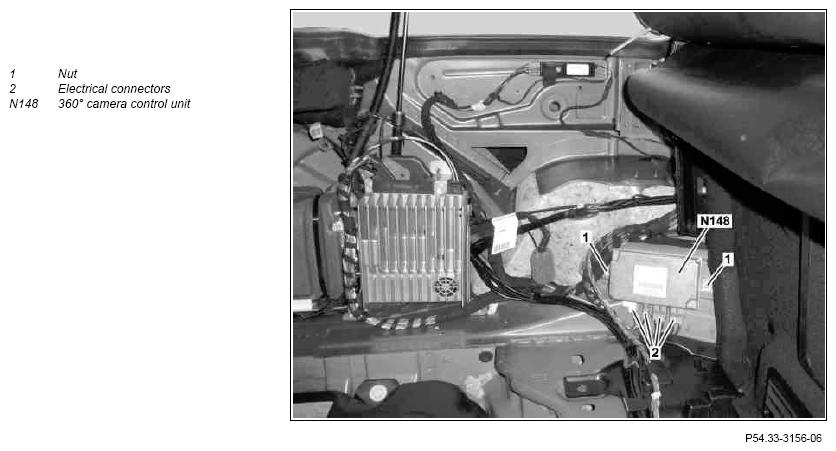

Shown on model 207.4

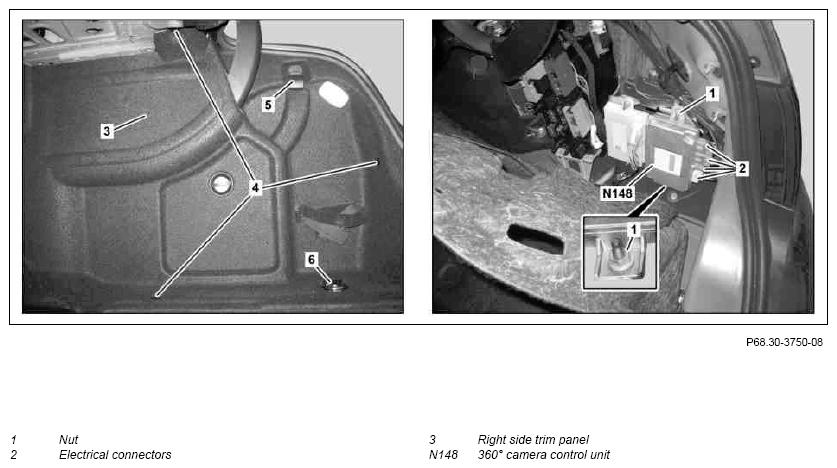

Illustrated on model 207.3
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out data from 360° camera control unit (N148) with diagnostic system | When replacing 360° camera control unit (N148). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Remove left side paneling in trunk | MODEL 207.4 | |
| AR68.30-P-4800EC | |||
| 2.2 | Detach right side panel (3) from trunk and fold to one side | MODEL 207.3 | |
| AR68.30-P-4600EC | |||
| 3 | Unscrew nuts (1) and detach 360° camera control unit (N148) | ||
| 4 | Disconnect electrical connectors from 360° camera control unit (N148) | ||
| 5 | Remove 360° camera control unit (N148) | ||
| 6 | Install in the reverse order | ||
| 7 | Transfer data read out from 360° camera control unit (N148) with diagnostic system | When replacing 360° camera control unit (N148). | |
| AD00.00-P-2000-04A |
