Overview of system components for Lane Keeping Assist - GF54.71-P-9995CA
MODEL 207 up to model year 2014 with CODE 476 (Lane keeping assist)

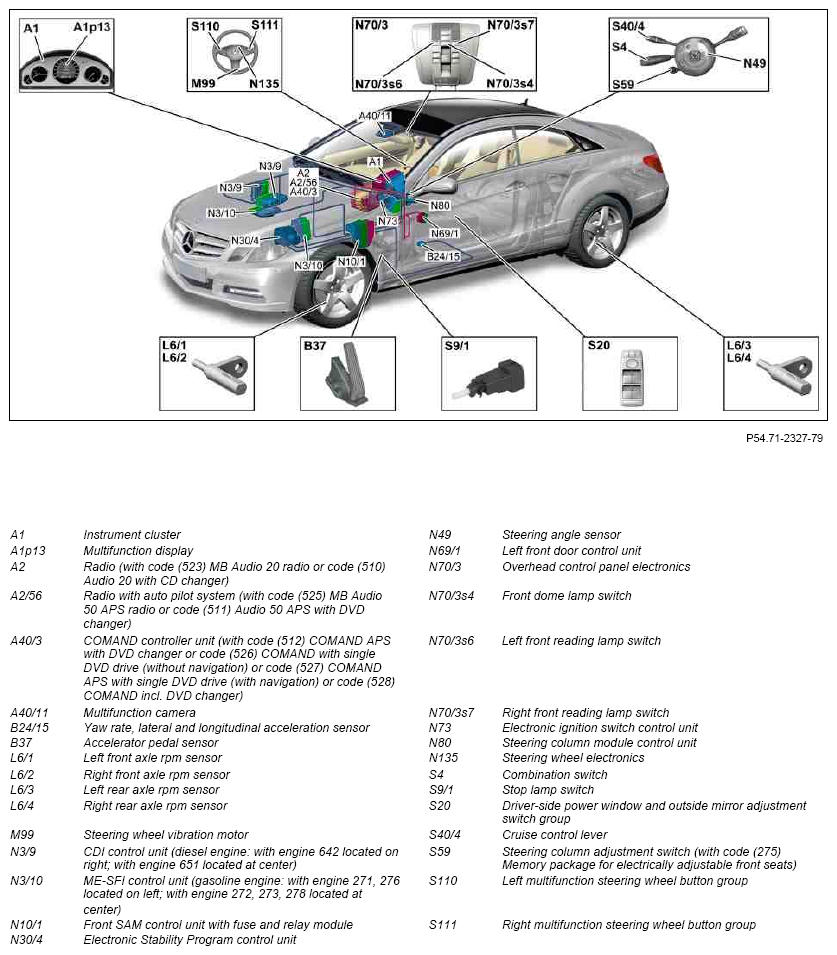

Illustrated on model 207.3
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for the radio | MODEL 207 up to model year 2014 with CODE 476 (Lane keeping assist) with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 207 up to model year 2014 with CODE 476 (Lane keeping assist) with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) A2 |
GF82.60-P-3122CAA | |
| Component description for radio with auto pilot system | MODEL 207 up to model year 2014 with CODE 476 (Lane keeping assist) with CODE 511 (Audio 50 APS with DVD changer) without CODE 525 (MB Audio 50 APS radio) MODEL 207 up to model year 2014 with CODE 476 (Lane keeping assist) with CODE 525 (MB Audio 50 APS radio) without CODE 511 (Audio 50 APS with DVD changer) A2/56 |
GF82.61-P-4112CAA | |
| Component description for COMAND controller unit | MODEL 207 up to model year 2013 with CODE 476 (Lane keeping assist) with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 207 up to model year 2013 with CODE 476 (Lane keeping assist) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) A40/3 |
GF82.85-P-3136CA | |
| MODEL 207 up to model year 2013 with CODE 476 (Lane keeping assist) with CODE 526 (COMAND with single DVD drive (without navigation)) without CODE 528 (COMAND with DVD changer) MODEL 207 up to model year 2013 with CODE 476 (Lane keeping assist) with CODE 528 (COMAND with DVD changer) without CODE 526 (COMAND with single DVD drive (without navigation)) A40/3 |
GF82.85-P-3136CAA | ||
| MODEL 207 as of model year 2013 up to model year 2014 with CODE 476 (Lane keeping assist) with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 528 (COMAND with DVD changer) MODEL 207 as of model year 2013 up to model year 2014 with CODE 476 (Lane keeping assist) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer) without CODE 528 (COMAND with DVD changer) MODEL 207 as of model year 2013 up to model year 2014 with CODE 476 (Lane keeping assist) with CODE 528 (COMAND with DVD changer) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136CAB | ||
| MODEL 207 up to model year 2013 with CODE 476 (Lane keeping assist) with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136CAJ | ||
| Component description for multifunction camera | A40/11 | GF54.21-P-3300CA | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810CA | |
| Component description for CDI control unit | MODEL 207 with ENGINE 651.9 up to model year 2014 with CODE 476 (Lane keeping assist) N3/9 |
GF07.16-P-6000OM | |
| MODEL 207 with ENGINE 642.8 up to model year 2014 with CODE 476 (Lane keeping assist) N3/9 |
GF07.16-P-6000OG | ||
| Component description for ME-SFI (ME) control unit | MODEL 207 with ENGINE 271.8 up to model year 2014 with CODE 476 (Lane keeping assist) N3/10 |
GF07.61-P-6000MG | |
| MODEL 207 with ENGINE 272.9 (except 272.984) up to model year 2014 with CODE 476 (Lane keeping assist) N3/10 |
GF07.61-P-6000MI | ||
| MODEL 207 with ENGINE 272.984 up to model year 2014 with CODE 476 (Lane keeping assist) N3/10 |
GF07.61-P-6000MIE | ||
| MODEL 207 with ENGINE 273.9 up to model year 2014 with CODE 476 (Lane keeping assist) N3/10 |
GF07.61-P-6000ML | ||
| MODEL 207 with ENGINE 276.9 up to model year 2014 with CODE 476 (Lane keeping assist) N3/10 |
GF07.61-P-6000MM | ||
| MODEL 207 with ENGINE 278.9 up to model year 2014 with CODE 476 (Lane keeping assist) N3/10 |
GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119CA | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CA | |
| Component description for electronic overhead control panel | N70/3 | GF82.20-P-5217CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CA | |
| Table of contents for function description of Lane Keeping Assist | GF54.71-P-0995CA |
