Overview of system components, Speed Limit Assist - GF54.30-P-9990CA
MODEL 207.3 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist)
MODEL 207.4 up to model year 2014 with CODE 513 (Speed Limit Assist)

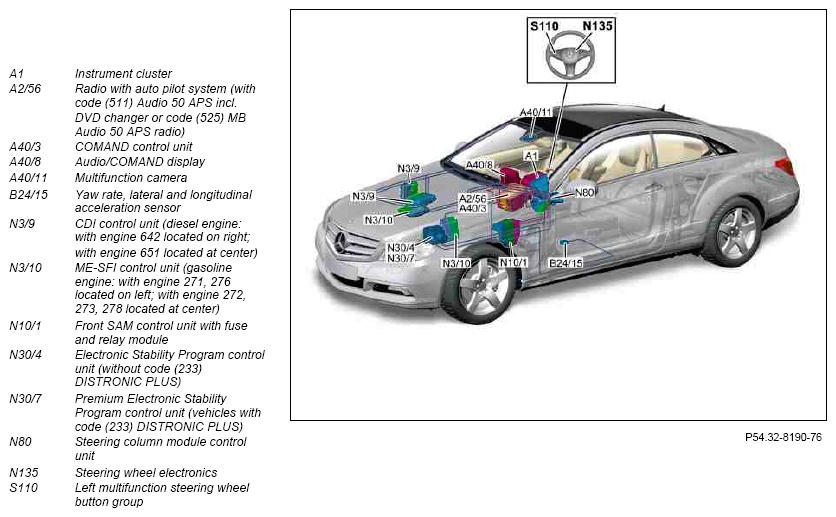

Illustrated on model 207.3
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for radio with auto pilot system | MODEL 207.3 as of model year 2010 up to model year 2014 with CODE 511 (Audio 50 APS with DVD changer) with CODE 513 (Speed Limit Assist) without CODE 525 (MB Audio 50 APS radio) MODEL 207.3 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) with CODE 525 (MB Audio 50 APS radio) without CODE 511 (Audio 50 APS with DVD changer) MODEL 207.4 up to model year 2014 with CODE 511 (Audio 50 APS with DVD changer) with CODE 513 (Speed Limit Assist) without CODE 525 (MB Audio 50 APS radio) MODEL 207.4 up to model year 2014 with CODE 513 (Speed Limit Assist) with CODE 525 (MB Audio 50 APS radio) without CODE 511 (Audio 50 APS with DVD changer) A2/56 |
GF82.61-P-4112CAA | |
| Component description for COMAND controller unit | MODEL 207.3 as of model year 2010 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) with CODE 513 (Speed Limit Assist) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 207.3 as of model year 2010 up to model year 2013 with CODE 513 (Speed Limit Assist) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) MODEL 207.4 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) with CODE 513 (Speed Limit Assist) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 207.4 up to model year 2013 with CODE 513 (Speed Limit Assist) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) A40/3 |
GF82.85-P-3136CA | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150CA | |
| Component description for multifunction camera | A40/11 | GF54.21-P-3300CA | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810CA | |
| Component description for CDI control unit | MODEL 207.3 with ENGINE 642.8 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 207.4 with ENGINE 642.8 up to model year 2014 with CODE 513 (Speed Limit Assist) N3/9 |
GF07.16-P-6000OG | |
| MODEL 207.3 with ENGINE 651.9 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 207.4 with ENGINE 651.9 up to model year 2014 with CODE 513 (Speed Limit Assist) N3/9 |
GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 207.3 with ENGINE 271.8 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 207.4 with ENGINE 271.8 up to model year 2014 with CODE 513 (Speed Limit Assist) N3/10 |
GF07.61-P-6000MG | |
| MODEL 207.3 with ENGINE 272.9 (except 272.984) as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 207.4 with ENGINE 272.9 (except 272.984) up to model year 2014 with CODE 513 (Speed Limit Assist) N3/10 |
GF07.61-P-6000MI | ||
| MODEL 207.3 with ENGINE 272.984 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 207.4 with ENGINE 272.984 up to model year 2014 with CODE 513 (Speed Limit Assist) N3/10 |
GF07.61-P-6000MIE | ||
| MODEL 207.3 with ENGINE 273.9 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 207.4 with ENGINE 273.9 up to model year 2014 with CODE 513 (Speed Limit Assist) N3/10 |
GF07.61-P-6000ML | ||
| MODEL 207.3 with ENGINE 276.9 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 207.4 with ENGINE 276.9 up to model year 2014 with CODE 513 (Speed Limit Assist) N3/10 |
GF07.61-P-6000MM | ||
| MODEL 207.3 with ENGINE 278.9 as of model year 2010 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 207.4 with ENGINE 278.9 up to model year 2014 with CODE 513 (Speed Limit Assist) N3/10 |
GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for Electronic Stability Program control unit | N30/4, N30/7 | GF42.45-P-5119CA | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CA | |
| Table of contents for function description, Speed Limit Assist | GF54.30-P-0991CA |
