Remove/Install Expansion Reservoir - AR20.30-P-4950MNE
Engine 177 in Model 213

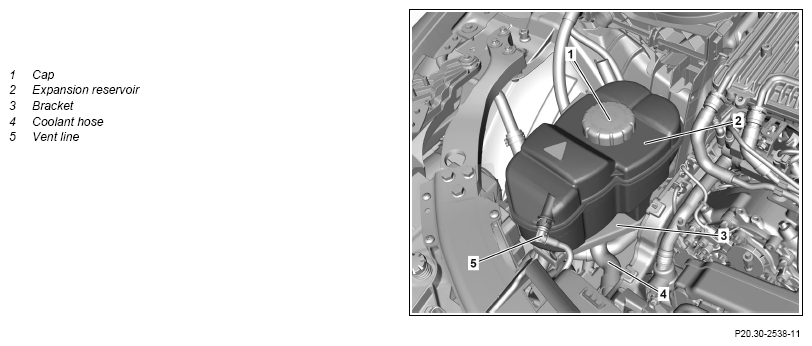

Shown on engine 177 in Model 213.089
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove cap (1) | ||
| 2 | Suction coolant out of the expansion reservoir (2) | Fig 2 | |
| 3 | Remove bleed line (5) from expansion reservoir (2) | AR20.20-P-7441-01RQ | |
| 4 | Remove expansion reservoir (2) from holder (3) | ||
| 5 | Remove coolant hose (4) from expansion reservoir (2) | Engine 177 in Model 213.089/289 | AR20.20-P-7441-01RQ |
| Fig 3 | |||
| 6 | Release and disconnect electrical connection on expansion reservoir (2) | ||
| 7 | Remove expansion reservoir (2) | ||
| 8 | Install in the reverse order | ||
| 9 | Check engine cooling system for leaktightness | AR20.00-P-1011OLC | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check engine cooling system for proper operation |
