Remove/Install Oil Circuit Feed Line Of Turbochargers - AR09.40-P-6040MNE

Engine 177 in model 213

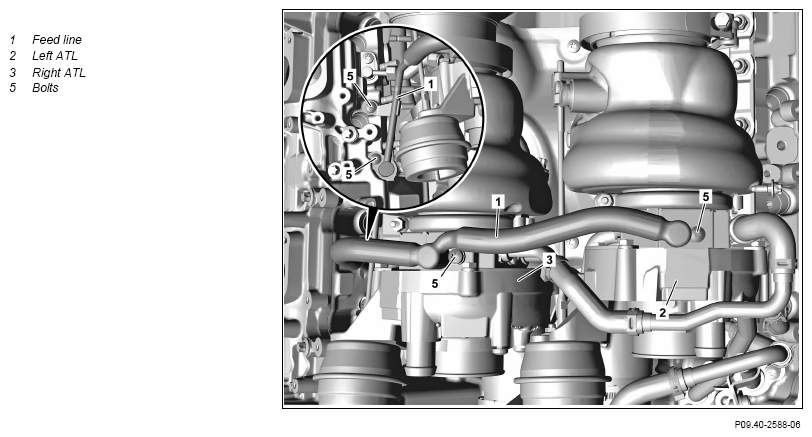

Fig 1: Oil Circuit Feed Line Of Turbochargers Components Location - Engine 177 In Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove ignition coil from 1st and 2nd cylinders	Only install upper engine cover after the leak test.	AR15.12-P-2009MNE
2	Remove heat shield from right turbocharger (3)		AR09.40-P-6027-00MNE
		Bolt, side heat shield to cylinder head cover	*BA09.40-P-1007-01ZA
3	Move heat shield on feed line (1) to the side
4	Clean area of feed line (1)	Assembly cleaner	*BR00.45-Z-1028-04A
5	Remove screws (5)	Bolt, oil pressure line to turbocharger/cylinder head	*BA09.40-P-1002-01ZA
6	Remove feed line (1) and close off openings with suitable stop plugs	Install new sealing rings. Record plug	Fig 2
7	Install in the reverse order
8	Check engine oil level and correct		AP18.00-P-1812DKI
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Perform an engine test run and check engine for leak tightness
10	Install upper engine cover		AR01.10-P-2405MNE

TURBOCHARGER

Number	Designation		Engine 177
BA09.40-P-1002-01ZA	Bolt, oil pressure line to turbocharger/cylinder head	Nm	9

TURBOCHARGER

Number	Designation		Engine 177
BA09.40-P-1007-01ZA	Bolt, side heat shield to cylinder head cover	Nm	9

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
