Remove/Install Additional Engine Radiator - AR20.20-P-3867MNE
Engine 177 in Model 213
Shown on model 190 with engine 178

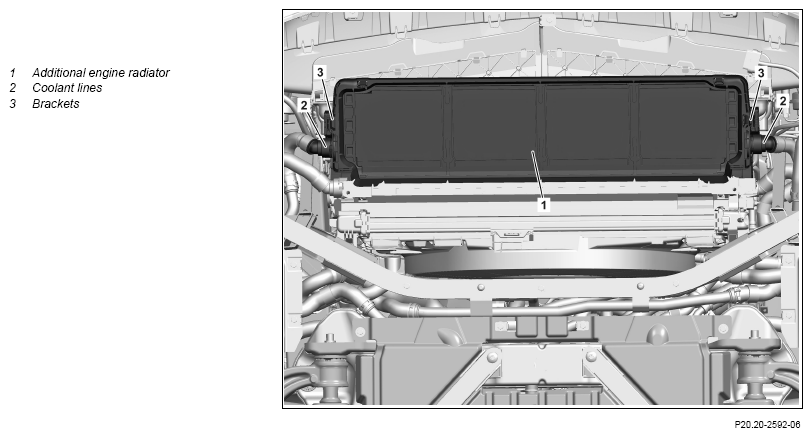

Fig 1: Additional Engine Radiator Components Location - Engine 177 In Model 213 (Shown On Model 190 With Engine 178)
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142MNE | |
| 2 | Disconnect coolant lines (2) on additional engine radiator (1) and close off openings with protective covers | Fig 2 | |
| 3 | Unclip the retaining frame of the additional engine radiator (1) at the front and side of the air duct segment | ||
| 4 | Unclip the retaining frame of the additional engine radiator (1) at the brackets (3) and remove along with the additional engine radiator (1) | ||
| 5 | Install in reverse order |
