Remove/Install Right Circulation Pump For Low-Temperature Circuit - AR09.41-P-6931MSA
Engine 256.9 in model 213, 238, 257, 290

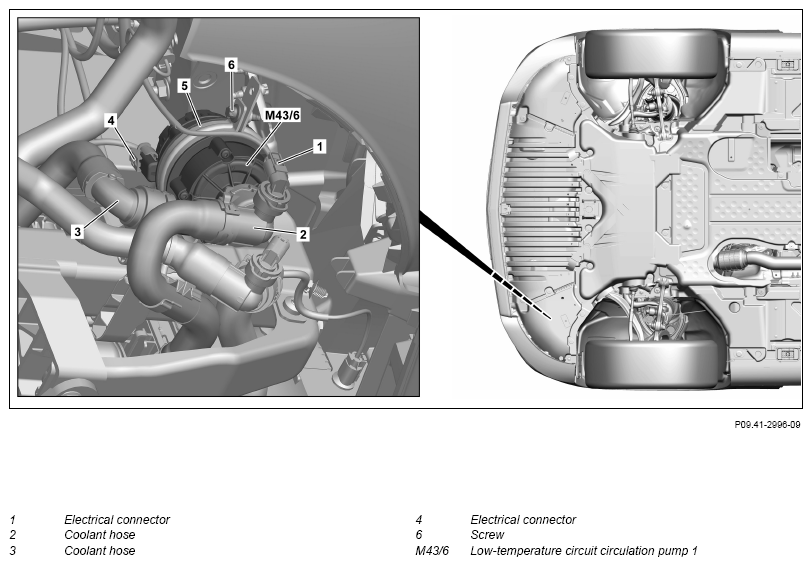

Fig 1: Right Circulation Pump For Low-Temperature Circuit Components Location - Engine 256.9 In Model 213
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit. | AR09.41-P-6834MSA | |
| 2 | Release and disconnect electrical connectors (1, 4). | ||
| 3 | Remove coolant hoses (2, 3) from low-temperature circuit circulation pump 1 (M43/6). | AR09.41-P-1311-01AL | |
| 4 | Remove bolt (6). | *BA00.10-P-1002-04A | |
| 5 | Remove low-temperature circuit circulation pump 1 (M43/6). | ||
| 6 | Install in the reverse order. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 x 1 | Nm | 9 | 13 |
