Remove/Install Taillamp Unit On Liftgate - AR82.10-P-4926LWT
Model 213.2

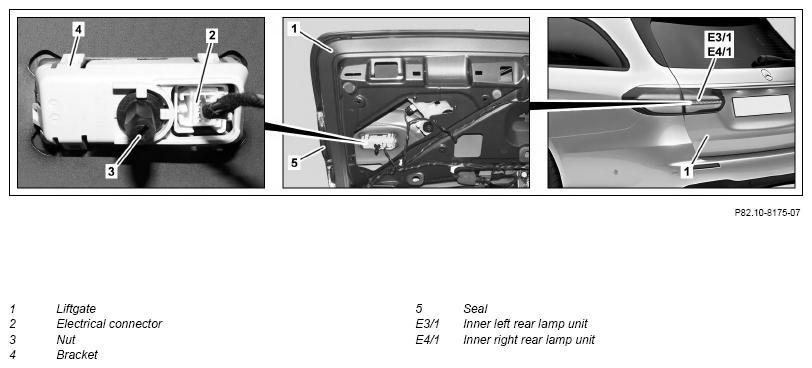

Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 213.2 with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove center liftgate paneling | AR72.20-P-6618LWS | |
| 2 | Disconnect electrical connection (2) | ||
| 3 | Unscrew nut (3) and remove bracket (4) 1236 |
Do not use a screwdriver to unscrew the nut (3). Otherwise the nut (3) may be damaged. |
|
| 4 | Remove inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1) outwards from the liftgate (1) | ||
| 5 | Install in the reverse order |
