Remove/Install Center Liftgate Trim - AR72.20-P-6618LWS

Model 205.2

Model 213.2

Model 253

Model 293

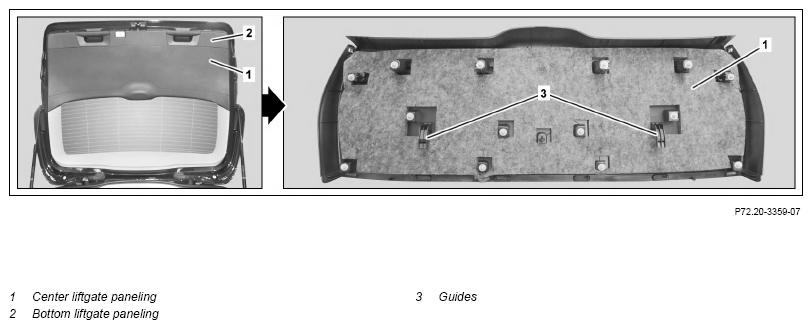

Fig 1: Center Liftgate Trim Components Location - Model 213.2 (Shown On Model 205.2)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.2

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove bottom liftgate trim (2).	Model 205.2, 213.2, 253	AR72.20-P-6617LWS
		Model 293	AR72.20-P-6617EQ
2	Unclip center liftgate trim (1), swivel in the direction of the Rear window, and remove.	: First insert center liftgate paneling (1) into liftgate with guides (3).
3	Install in the reverse order.
