Remove/Install Subwoofer Amplifier - AR82.62-P-7722LWE
Model 213.0/1
with code 811 (High-End sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | Model 213.0/1 with code 811 (High-End sound system) with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove side paneling in left side of trunk | AR68.30-P-4800LWE | |

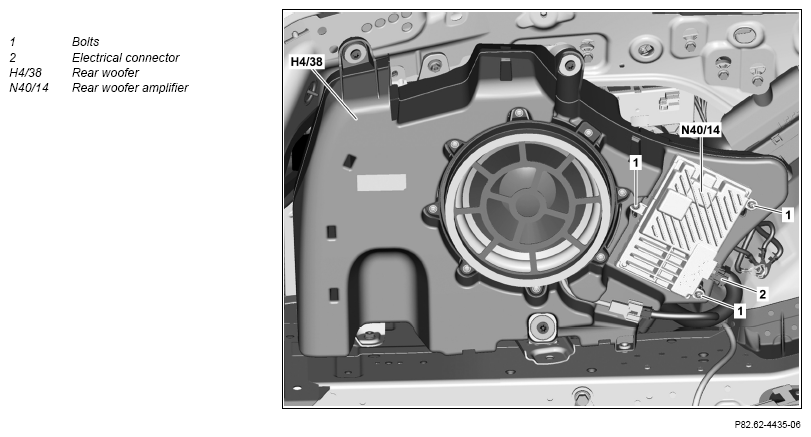

| 3 | Disconnect electrical connection (2) | ||
| 4 | Remove screws/bolts (1) and remove rear woofer amplifier (N40/14) from rear woofer (H4/38) | ||
| 5 | Install in the reverse order |
