Remove/Install Special Vehicle Multifunction Control Unit (MSS) - AR82.25-P-1207LWE
Model 213
with code 965 (Taxi/rental car - electrical pre-installation)

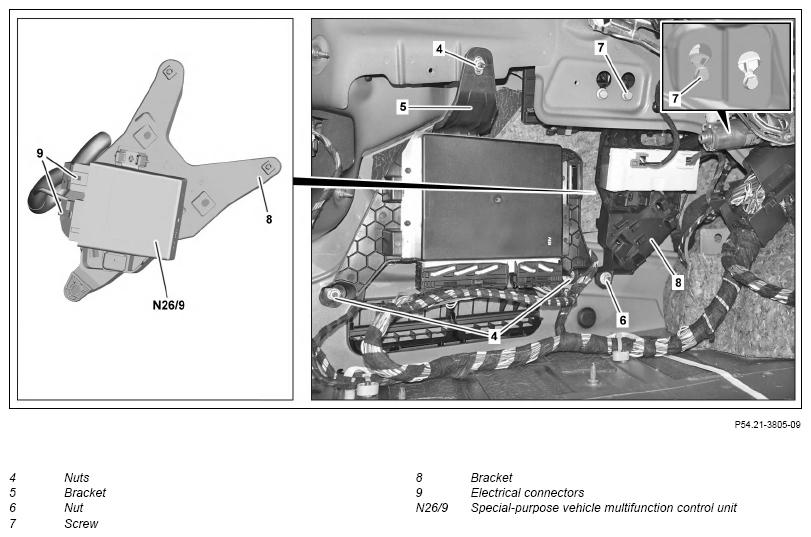

Fig 1: Special Vehicle Multifunction Control Unit (MSS) Components Location - Model 213 With Code 965
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | Model 213 with code 965 (Taxi/rental car - electrical pre-installation) with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of the special-purpose vehicle multifunction control unit (N26/9) | When replacing the special-purpose vehicle multifunction control unit (N26/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3.1 | Remove left luggage compartment lining at side | Model 213.0/1 with code 965 (Taxi/rental car - electrical pre-installation) | AR68.30-P-4800LWE |
| 3.2 | Remove left side load compartment lining | Model 213.2 with code 965 (Taxi/rental car - electrical pre-installation) | AR68.30-P-1185LWE |
| 4 | Remove subwoofer from trunk | Model 213.0/1 with code 811 (High-End sound system) with code 965 (Taxi/rental car - electrical pre-installation) |
AR82.62-P-7841LWE |

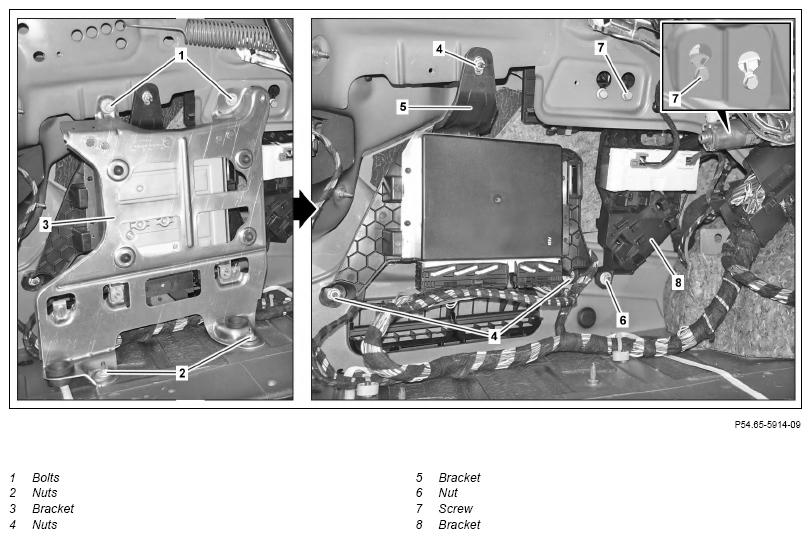

| 5 | Remove bolts (1) | Model 213.0/1 with code 811 (High-End sound system) with code 965 (Taxi/rental car - electrical pre-installation) Model 213 with code 810 (Premium sound system) with code 965 (Taxi/rental car - electrical pre-installation) |
|
| 6 | Unscrews nuts (2), remove bracket (3) with sound system control unit and place to one side with lines connected | Model 213.0/1 with code 811 (High-End sound system) with code 965 (Taxi/rental car - electrical pre-installation) Model 213 with code 810 (Premium sound system) with code 965 (Taxi/rental car - electrical pre-installation) |
|
| 7 | Unscrew nuts (4), remove bracket (5) with the control units and place to one side with lines connected | Model 213 with code 459 (Steel suspension with adjustable damping) with code 965 (Taxi/rental car - electrical pre-installation) Model 213 with code 489 (AIRMATIC) with code 965 (Taxi/rental car - electrical pre-installation) |
|
| 8 | Unscrew nut (6) | ||
| 9 | Loosen screws/bolts (7) and remove bracket (8) with special-purpose vehicle multifunction control unit (N26/9) and place to one side | ||
| 10 | Disconnect electrical connections (9) | ||
| 11 | Remove special-purpose vehicle multifunction control unit (N26/9) from bracket (8) | ||
| 12 | Install in the reverse order |
