Remove/Install Sound System Control Unit - AR82.62-P-7724LWE
Model 213
with code 810 (Premium sound system)
Model 213
with code 811 (High-End sound system)

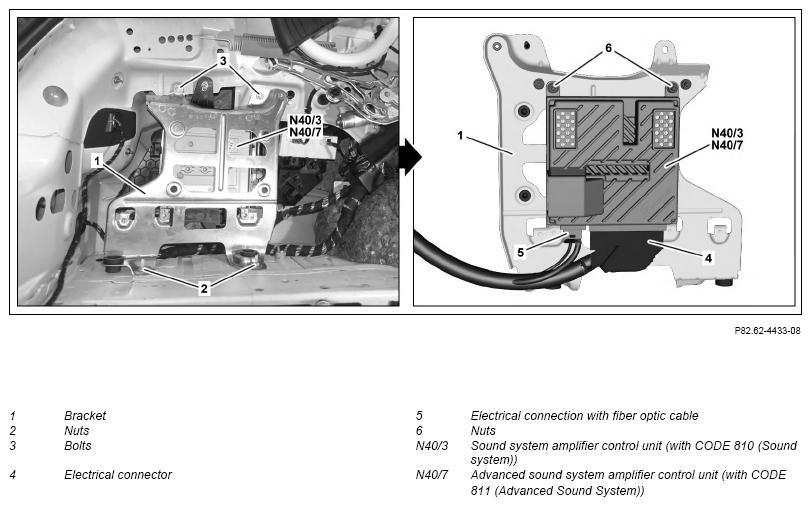

Shown on model 213.0 with code 810 (Sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | Model 213 with code 810 (Premium sound system) with code P17 (KEYLESS-GO package) Model 213 with code 811 (High-End sound system) with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Carry out initial startup of sound system amplifier control unit (N40/3) or advanced sound system amplifier control unit (N40/7) | When replacing sound system amplifier control unit (N40/3) or advanced sound system amplifier control unit (N40/7). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3.1 | Remove side paneling in left trunk | Model 213.0/1 with code 810 (Premium sound system) Model 213.0/1 with code 811 (High-End sound system) |
AR68.30-P-4800LWE |
| 3.2 | Remove left side load compartment lining | Model 213.2 with code 810 (Premium sound system) Model 213.2 with code 811 (High-End sound system) |
AR68.30-P-1185LWE |
| 4 | Remove subwoofer | Model 213.0/1 with code 811 (High-End sound system) | AR82.62-P-7841LWE |
| 5 | Unscrew nuts (2) | ||
| 6 | Remove bolts (3) | ||
| 7 | Remove bracket (1) with sound system amplifier control unit (N40/3) or with advanced sound system amplifier control unit (N40/7) and set down with electrical lines connected | ||
| 8 | Release and disconnect electrical connection (4) | ||
| 9 | Disconnect electrical connector with optical fiber (5) | ||
| 10 | Cover up plug for electrical connector with optical fiber (5) and equipment connection at sound system amplifier control unit (N40/3) or advanced sound system amplifier control unit (N40/7) | ||
| 11 | Remove bracket (1) with sound system amplifier control unit (N40/3) or with advanced sound system amplifier control unit (N40/7) | ||
| 12 | Unscrew nuts (6) and remove sound system amplifier control unit (N40/3) or advanced sound system amplifier control unit (N40/7) from bracket (1) | When replacing sound system amplifier control unit (N40/3) or advanced sound system amplifier control unit (N40/7). | |
| 13 | Install in the reverse order |
