Remove/Install Fan For Headlamp Unit - AR82.10-P-4742LWE
Model 213, 238
with code 631 (Static LED headlamps, left-hand traffic)
Model 213, 238
with code 632 (Headlamps, LED, static, right-side traffic)
Model 213, 238
with code P35 (Light Package)
Model 253
with code 640 (High-performance LED)
Model 253
with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 253
with code 642 (Dynamic LED headlamps, right-hand traffic)

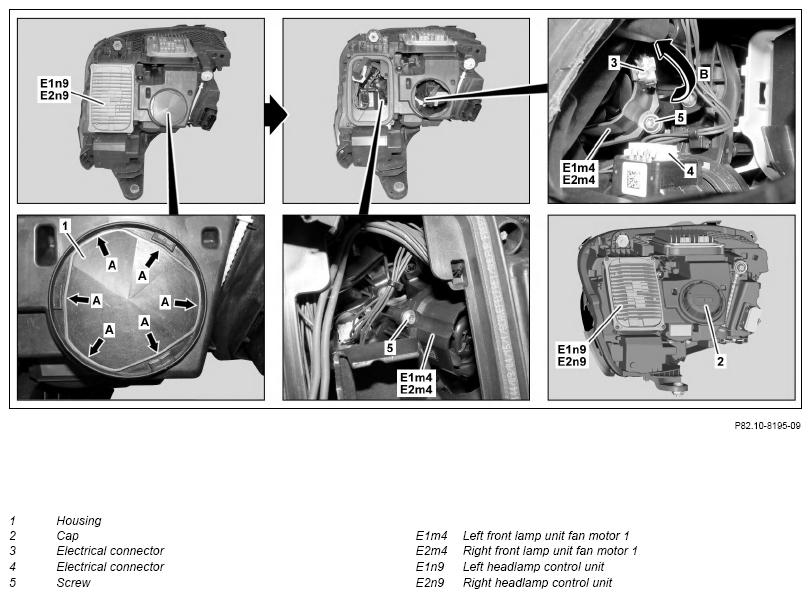

Shown on model 213 with code 631 (Headlamp LED static, left-hand traffic)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove front lamp unit. | Model 213 with code 631 (Static LED headlamps, left-hand traffic) Model 213 with code 632 (Headlamps, LED, static, right-side traffic) Model 213 with code P35 (Light Package) Model 253 with code 640 (High-performance LED) Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
AR82.10-P-4730LW |
| Model 238 with code 631 (Static LED headlamps, left-hand traffic) Model 238 with code 632 (Headlamps, LED, static, right-side traffic) Model 238 with code P35 (Light Package) |
AR82.10-P-4733LWO | ||
| 2.1 | Remove left headlamp control unit (E1n9) or right headlamp control unit (E2n9). | Model 213, 238 with code 631 (Static LED headlamps, left-hand traffic) Model 213, 238 with code 632 (Headlamps, LED, static, right-side traffic) Model 213, 238 with code P35 (Light Package) Model 213, 238 with code 631 (Static LED headlamps, left-hand traffic) except code P35 (Light Package) Model 213, 238 with code 632 (Headlamps, LED, static, right-side traffic) except code P35 (Light Package) |
AR82.10-P-4660LWF |
| Model 213, 238 with code P35 (Light Package) except code 631 (Static LED headlamps, left-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) | AR82.10-P-4660LWE | ||
| 2.2 | Remove actuation module of driving light. | Model 253 with code 640 (High-performance LED) Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
AR82.10-P-4650LWG |
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling vapors when working with plastics | Wear protective gloves and safety glasses. Ensure that the work area is adequately ventilated. |
AS00.00-Z-0001-02A | |
| 3.1 | Cut open housing (1) of lamp unit along the embossing (arrows A) with the hot knife. | If the cap (2) is not fitted. | |
| 000 588 03 84 00 Hot knife | Carefully cut out the housing (1). Otherwise, the component parts in the housing (1) may be damaged. |
WS82.00-P-0026B | |
| 3.2 | Turn cap (2) counterclockwise and remove. | If the cap (2) is fitted. | |
| 4 | Disconnect electrical connector (3) at right front lamp unit fan motor 1 (E2m4) or left front lamp unit fan motor 1 (E1m4). | ||
| 5 | Disconnect electrical connector (4) and expose wiring harness. | ||
| 6 | Remove screws (5) and guide out right front lamp unit fan motor 1 (E2m4) or left front lamp unit fan motor 1 (E1m4) from housing (1) (arrow B). | ||
| Install | |||
| 7 | Insert right front lamp unit fan motor 1 (E2m4) or left front lamp unit fan motor 1 (E1m4) into housing (1) and tighten screws (5). | ||
| 8 | Connect electrical connector (3) at right front lamp unit fan motor 1 (E2m4) or left front lamp unit fan motor 1 (E1m4). | ||
| 9 | Connect electrical connector (4) and route wiring harness. | ||
| 10 | Position cap (2) at housing (1) and lock by turning clockwise. | ||
| 11.1 | Install left headlamp control unit (E1n9) or right headlamp control unit (E2n9). | Model 213, 238 with code 631 (Static LED headlamps, left-hand traffic) Model 213, 238 with code 632 (Headlamps, LED, static, right-side traffic) Model 213, 238 with code P35 (Light Package) Model 213, 238 with code P35 (Light Package) except code 631 (Static LED headlamps, left-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) |
AR82.10-P-4660LWE |
| Model 213, 238 with code 631 (Static LED headlamps, left-hand traffic) except code P35 (Light Package) Model 213, 238 with code 632 (Headlamps, LED, static, right-side traffic) except code P35 (Light Package) |
AR82.10-P-4660LWF | ||
| 11.2 | Install driving light actuation module. | Model 253 with code 640 (High-performance LED) Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
AR82.10-P-4650LWG |
| 12 | Install front lamp unit. | Model 213 with code 631 (Static LED headlamps, left-hand traffic) Model 213 with code 632 (Headlamps, LED, static, right-side traffic) Model 213 with code P35 (Light Package) Model 253 with code 640 (High-performance LED) Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
AR82.10-P-4730LW |
| Model 238 with code 631 (Static LED headlamps, left-hand traffic) Model 238 with code 632 (Headlamps, LED, static, right-side traffic) Model 238 with code P35 (Light Package) |
AR82.10-P-4733LWO |
